Is a Carbon Fiber Trunk Worth It? Carbon vs OEM Trunk Lids

A hood vent gives heated, high-pressure engine-bay air a planned exit. In a suitable pressure zone, it can support radiator airflow, release trapped heat, and reduce pressure beneath the hood. Its value depends on placement, the route below the opening, and the vehicle’s complete cooling layout. This guide explains how hood vents work, when they help, and how vented hoods and cut-in louvers differ for street and track cars. How Do Hood Vents Work? Hood vents let heated, high-pressure air leave the engine bay. A well-positioned hood vent can support radiator airflow and reduce pressure beneath the front bodywork at speed. Heat Extraction Air enters through the grille and bumper openings as the car moves. Part of this flow passes through the radiator, absorbs heat, and enters the engine bay. A functional hood vent provides an outlet above the engine compartment. The pressure difference drives the process: air moves from the higher-pressure engine bay toward a lower-pressure area above the hood. A clear route between the radiator outlet and vent can support airflow through the cooling package. An SAE International road study measured a 1989 sedan during fan-off testing. Front-end and underhood components reduced the available airflow measured at the radiator exit by 84%. The vehicle-specific result shows how strongly the surrounding structure can affect the outlet path. A vent can also release heat around the turbocharger, exhaust manifold, intake, wiring, and nearby bodywork. Coolant temperature depends on the complete cooling system, including the radiator, thermostat, fans, ducting, coolant circuit, and heat exchangers. Hood Vents, Scoops, and Decorative Louvers A hood vent acts as an outlet, using its opening and louver shape to help heated engine-bay air move outward. A hood scoop normally faces the incoming airflow and feeds a ducted intake, intercooler, or another component. Decorative hood louvers may sit over a closed panel, where their role remains visual. Functional automotive hood vents create an open passage between the engine bay and the hood surface. Viewing the panel from below reveals whether heated air can reach the opening or whether the louvers are exterior trim. Why Does Hood Vent Placement Matter? Hood vent placement often has more influence than opening size. Effective extraction needs a useful pressure difference above the hood and a clear airflow route below it. A smaller opening in a suitable low-pressure region may extract air more effectively than a larger vent placed where outside pressure pushes air inward. Pressure Zones and Radiator Exit Air Pressure changes across the hood as exterior airflow meets the nose, follows the panel curvature, and approaches the windshield. Hood angle, grille design, ride height, windshield rake, and surrounding aero parts all influence the location of useful low-pressure regions. The vent also needs to align with the radiator-exit path. A boxed outlet or underhood shroud may direct heated air toward a specific area of the hood. Hood vent louvers shape the local surface flow around the opening. Blade height, angle, spacing, and orientation can influence extraction, while the area below the vent must remain clear of covers or solid shrouds that block the route. Pressure measurements, thermal sensors, wool-tuft testing, CFD, and controlled track tests can compare placement options under consistent conditions. Vehicle-Specific Hood Geometry The hood’s outer skin may appear open from above while reinforcement ribs occupy the same area underneath. These structures support panel stiffness, latch loads, and crash behavior, so the final vent position must account for both surfaces. Steel, aluminum, fiberglass, and carbon fiber panels require different cutting tools and edge treatments. Car hood air vents also need clearance from wiring, fluid reservoirs, ignition components, exposed filters, and moving engine parts. A model-specific template can align the vent with the pressure region, reinforcement layout, underhood clearance, and factory body lines. The finished installation can then support airflow while remaining visually integrated with the vehicle’s design. When Do Hood Vents Help on Street and Track Cars? Hood vents provide the most value during sustained heat load and higher-speed driving. They can also suit street cars when their fitment, drainage, and maintenance requirements work with daily use. Cooling and Aero Expectations Track driving keeps the engine, turbocharger, cooling system, and brakes under load for several laps. High ambient temperatures reduce the cooling package’s recovery time and make heat soak easier to observe. Turbocharged cars can retain considerable heat around the exhaust manifold and turbine housing after a hard run. A well-developed hood vent may release part of that heat while providing a clearer outlet for air leaving the radiator. The aerodynamic effect increases with speed. Pressure below the hood acts against the panel, while lower pressure above a well-positioned extractor helps draw air outward. Reducing underhood pressure can also reduce front-end lift. Ford studied this relationship while developing the 2020 Shelby GT500. Its engineers analyzed more than 500 cooling and aerodynamic designs, including a 6.03-square-foot louvered hood vent. The final vehicle paired its vent and removable rain tray with front ducting, heat exchangers, a splitter, underbody management, and rear aero components. A modified car requires the same system-level view. A front lip, splitter, flat floor, diffuser, or rear wing affects the vehicle’s broader aero balance, while the hood vent manages one part of the front airflow path. Rain, Washing, and Daily Use Street use adds water management to the hood vent design. Louver angle, rain trays, drain channels, and the position of electrical components influence where incoming water travels. A rain tray can shield sensitive areas, although it may restrict part of the extraction path. Removable trays allow some vehicle-specific systems to use different arrangements for regular road use and track driving. The drainage path should direct water away from exposed filters, ignition components, electrical connectors, reservoirs, and areas where moisture can collect. Low-pressure washing protects the vent openings and panel edges from concentrated spray. Product-specific guidance defines the appropriate rain-tray use, drainage, and maintenance for each hood and vehicle application. Which Hood Vent Setup Fits Your Car? A replacement vented hood and cut-in hood louvers suit different vehicle structures, airflow paths, water-management requirements, visual directions, and installation scopes. Replacement Hood or Cut-In Louvers Cut-in hood louvers retain most of the factory panel. Installation involves positioning a template, creating the opening, treating the exposed edges, and securing the louver insert. This route offers more placement flexibility but permanently changes the factory hood. The selected area must account for reinforcement ribs, panel curvature, underhood clearance, and left-to-right alignment. Metal hoods need corrosion protection at the cut edges. Composite panels require a cutting method that limits cracking, splintering, and surface damage. A complete carbon fiber hood replaces the factory panel and integrates the vents, exterior shape, and internal construction into one component. It can suit a build that calls for a larger material and design change. Cut-in car hood louvers may suit an owner who wants to retain the factory panel and finish. A replacement hood must integrate with the hinges, latches, panel gaps, washer hardware, seals, struts, and available opening clearance. Fitment and Installation Quality Correct fitment begins with the exact model, year, body style, and trim because vehicles within the same model family may use different hood shapes, latch positions, washer systems, or underhood layouts. The printed scale, reference points, panel curvature, and reinforcement position are validated against the physical car before cutting. Fasteners and edge treatments must then remain secure through heat, vibration, rain, washing, and repeated opening cycles. A replacement hood should follow the surrounding fender and bumper gaps, sit at the correct height, and engage both latches without excessive closing force. Professional installation is appropriate for composite cutting, structural trimming, latch adjustment, and unfamiliar carbon-fiber work. How Can a Vehicle-Specific Vented Hood Complete Your Build? A vehicle-specific vented hood can combine functional venting with the factory body lines, mounting points, and surrounding aero components. The hood forms one of the largest surfaces at the front of the car. Its center line, shoulder shape, vent position, and exposed carbon pattern influence the appearance of the complete front section. RevoZport’s carbon fiber hood collection includes model-specific applications for selected Audi, BMW, Chevrolet, and Tesla platforms. Available designs range from refined replacement hoods to more pronounced aero-focused options. Material, vent design, and installation requirements vary by product. Selected RevoZport hoods use Toray pre-preg carbon fiber and autoclave construction, while the matching product page identifies the compatible model years, finish, included parts, and fitment details. The rest of the exterior should follow the same design direction. A vented hood can connect with the bumper and front aero, then continue through the fender details and side skirts. This creates a more cohesive material and surface flow across the vehicle. The exact platform, road or track use, and intended level of visual change define the appropriate hood direction for the build. Is a Hood Vent Worth Adding? A hood vent is worth considering when its position connects high-pressure engine-bay air with a suitable low-pressure area above the hood. Effective venting also depends on a clear radiator-exit path, accurate fitment, and drainage suited to the vehicle. Track cars gain the most during sustained heat and higher-speed use, while street builds place more emphasis on water management, finish, panel alignment, and maintenance. The hood or louver setup should reflect the exact platform, driving conditions, and exterior direction. RevoZport’ model-specific hood range provides options for builds that need integrated venting and a more complete carbon front profile. Frequently Asked Questions Can Hood Vents Work at Low Speeds? Yes. Hood vents can release heat at low speeds through natural convection and fan-driven airflow. Extraction created by the pressure difference above and below the hood becomes stronger as vehicle speed increases. Do All Hood Louvers Need to Face the Same Direction? No. Louver direction depends on the local airflow and pressure around each opening. Paired hood louvers may mirror each other visually while keeping their blades oriented to support extraction. Is a Vented Hood Different From a Hood Louver Insert? Yes. A vented hood replaces the complete factory panel and integrates its openings into the hood structure. A louver insert requires the existing hood to be cut. Can I Add Hood Vents Without Changing the Rest of My Aero Parts? Yes. A cooling-focused hood vent can work without a complete aero package when its position and outlet path are suitable. Higher-speed builds also need a balanced relationship between the front and rear aero components.

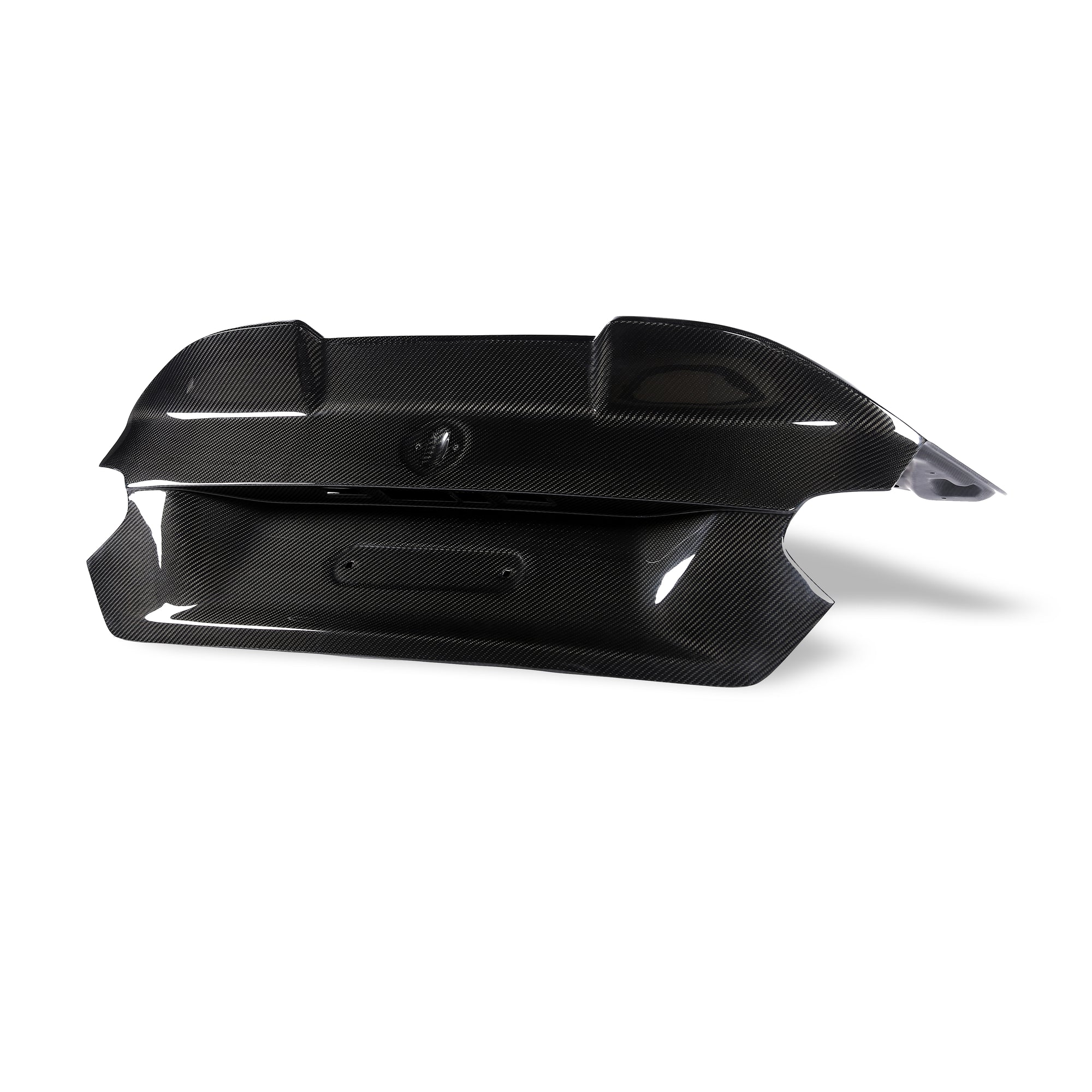

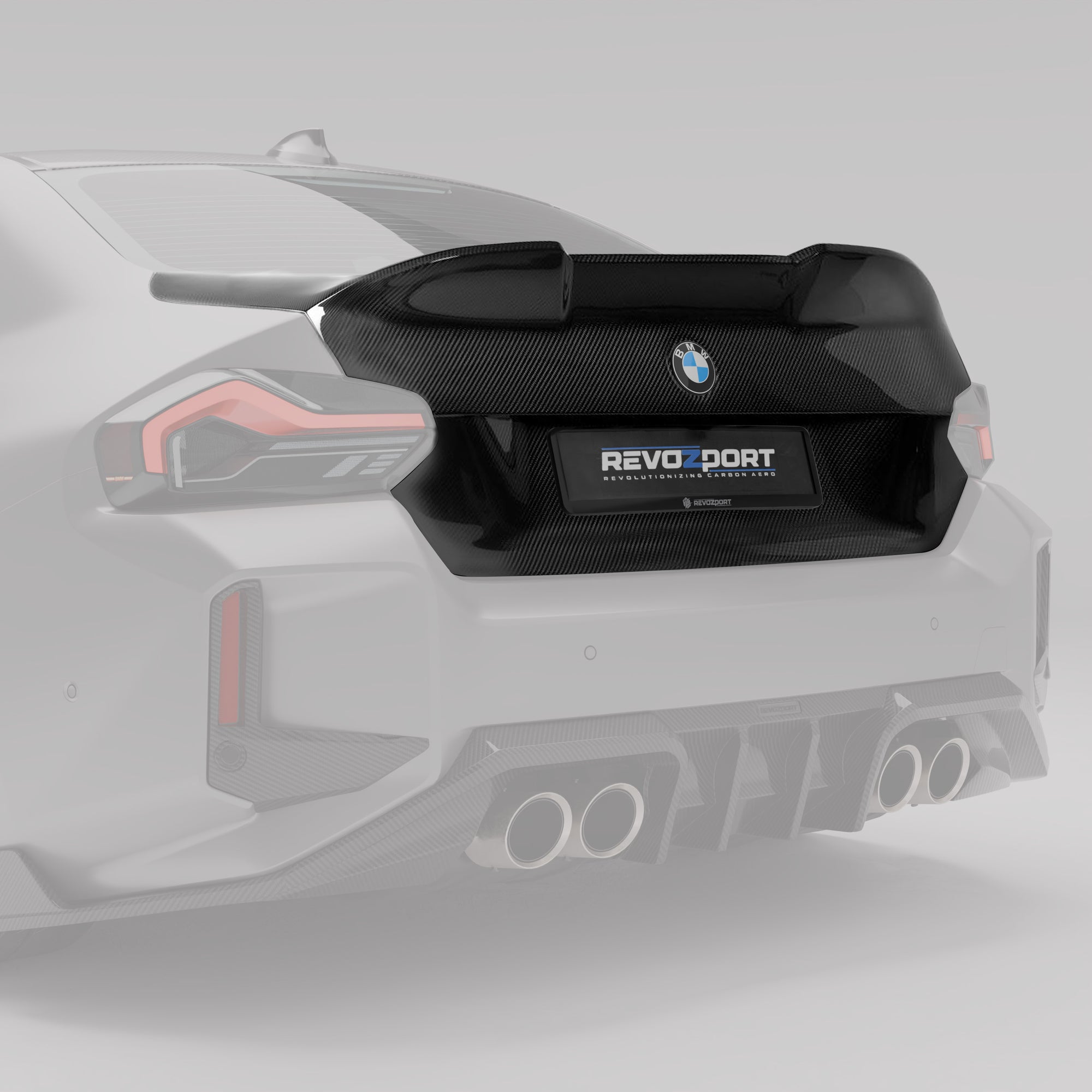

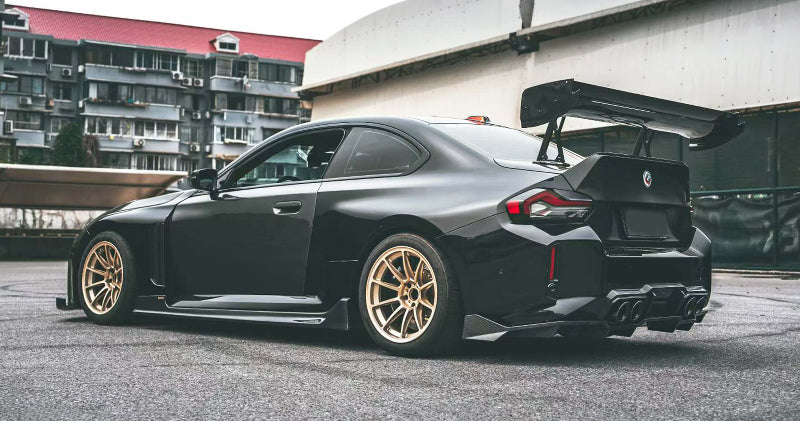

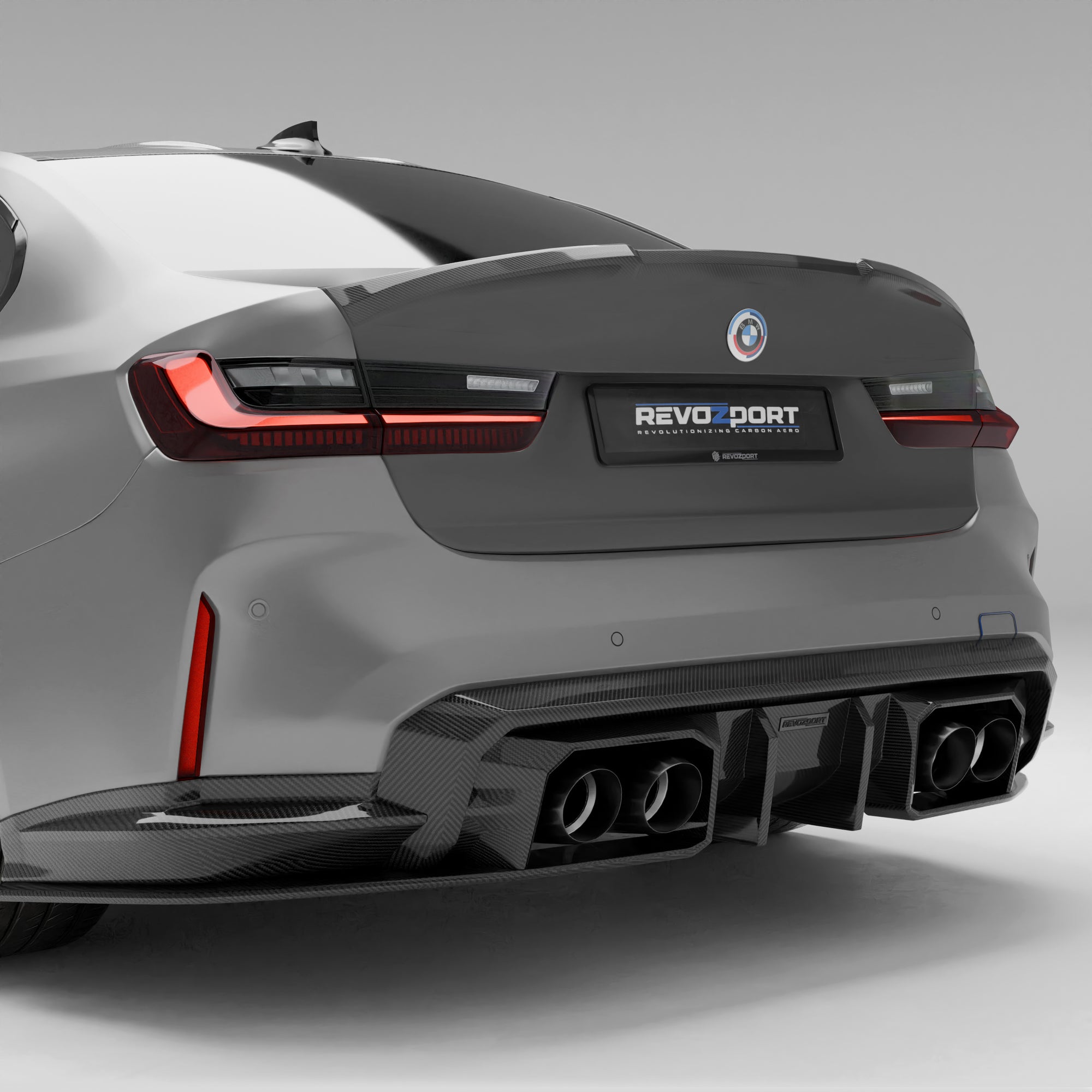

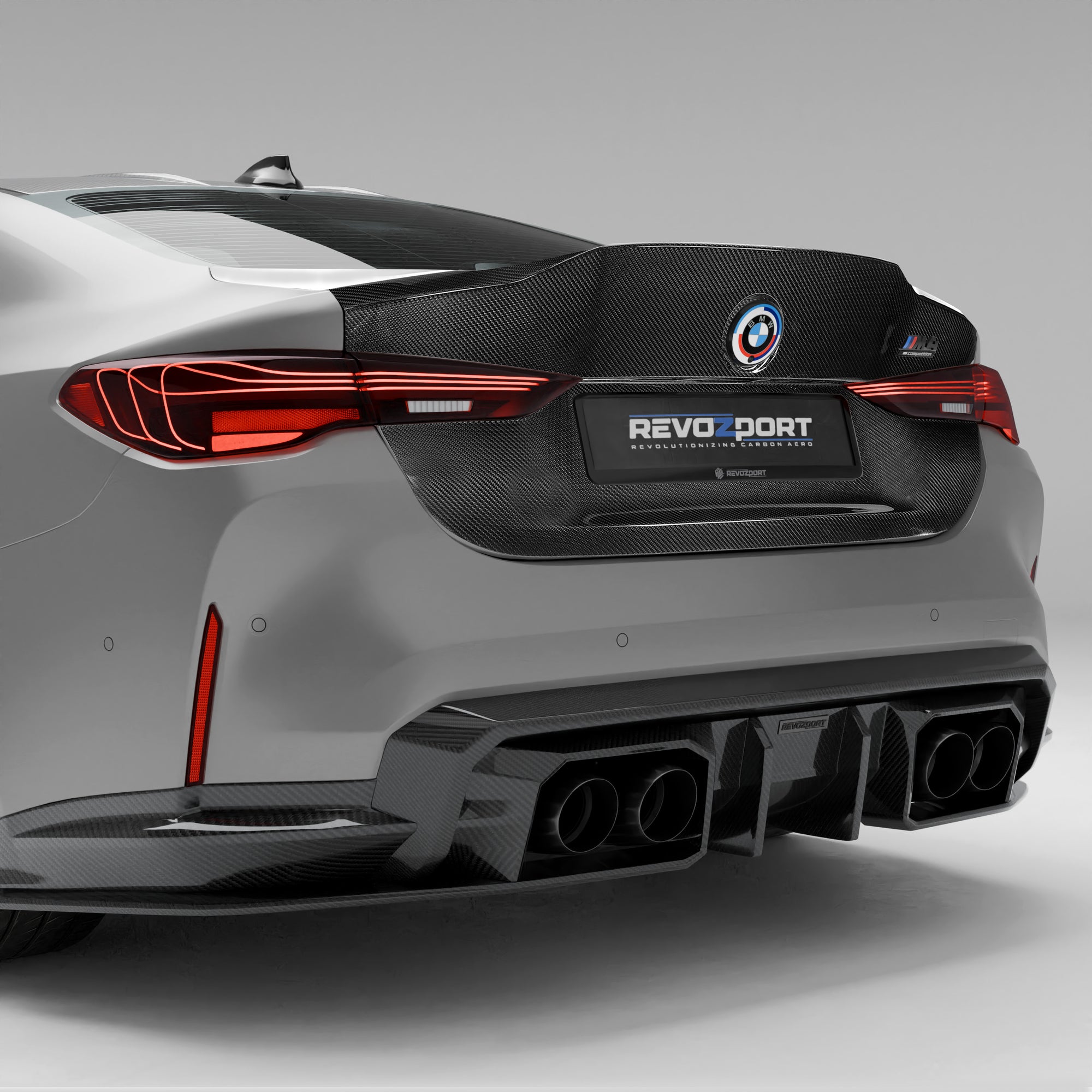

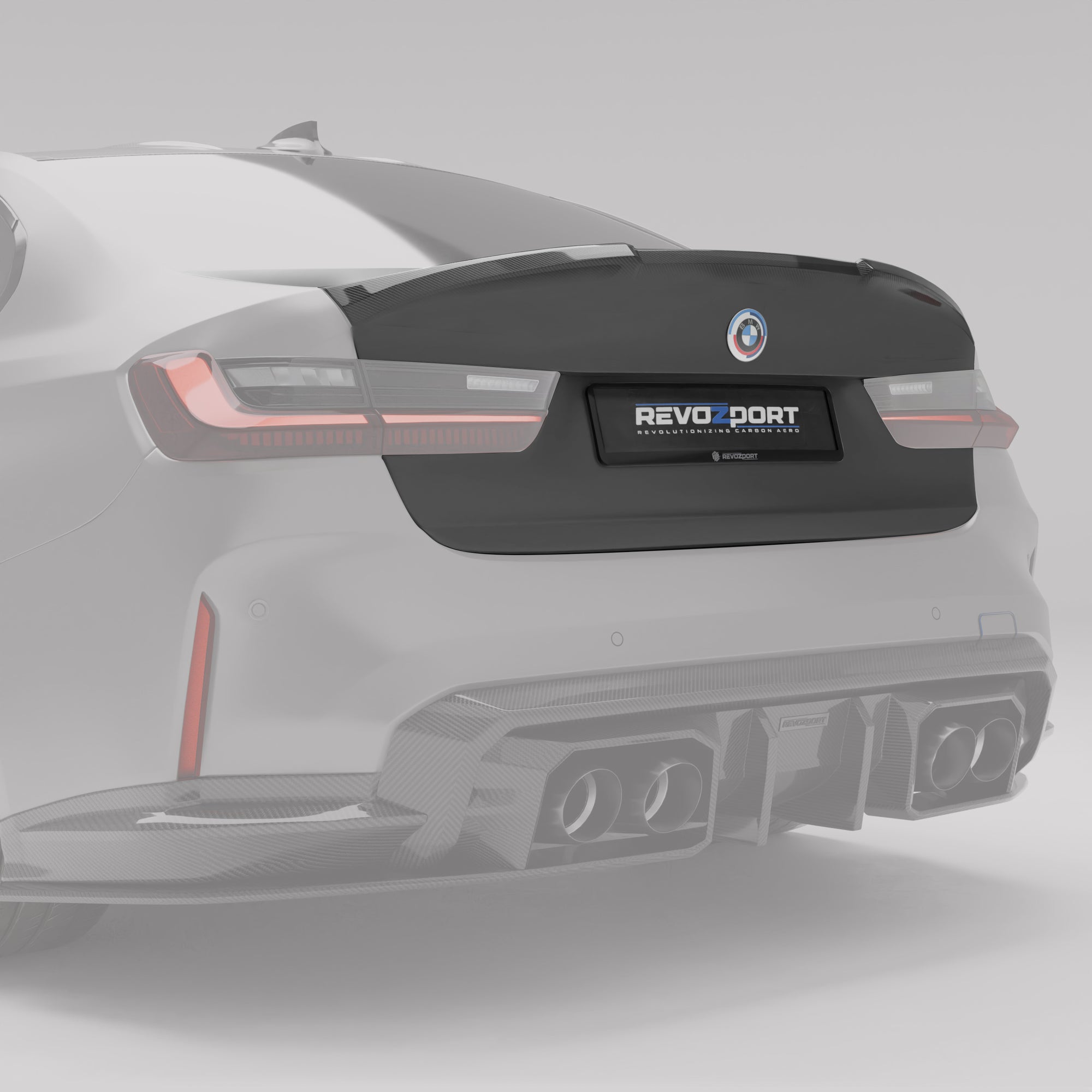

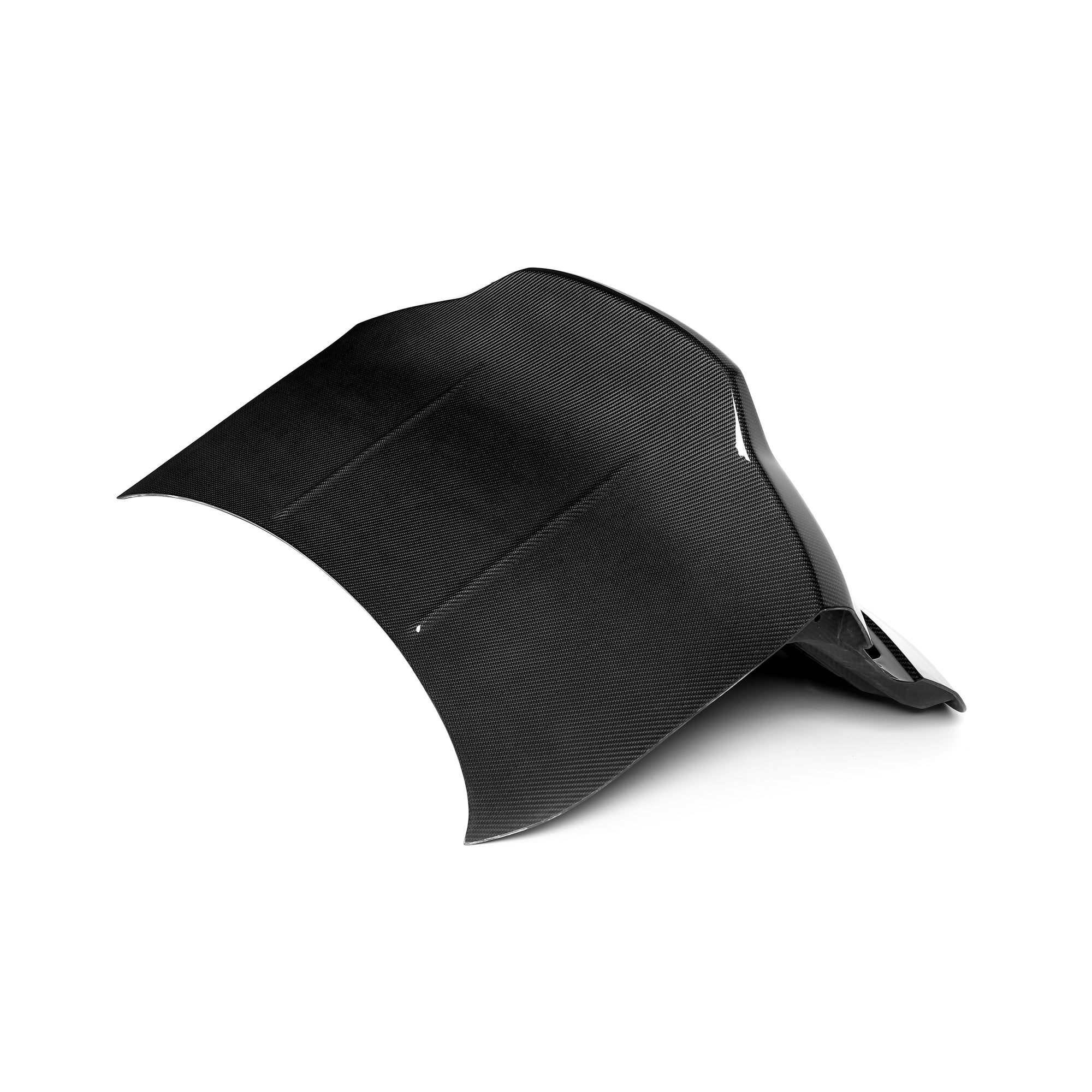

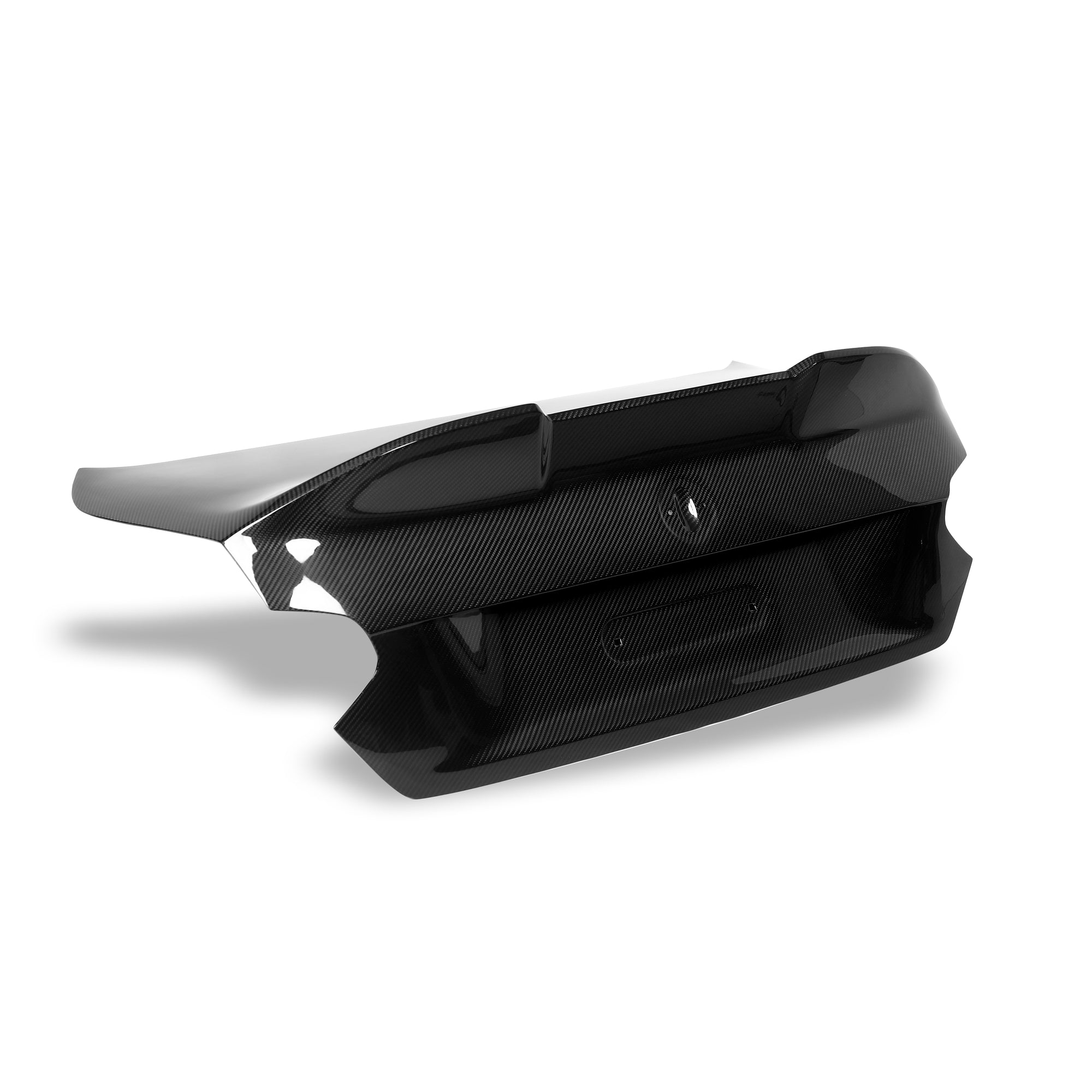

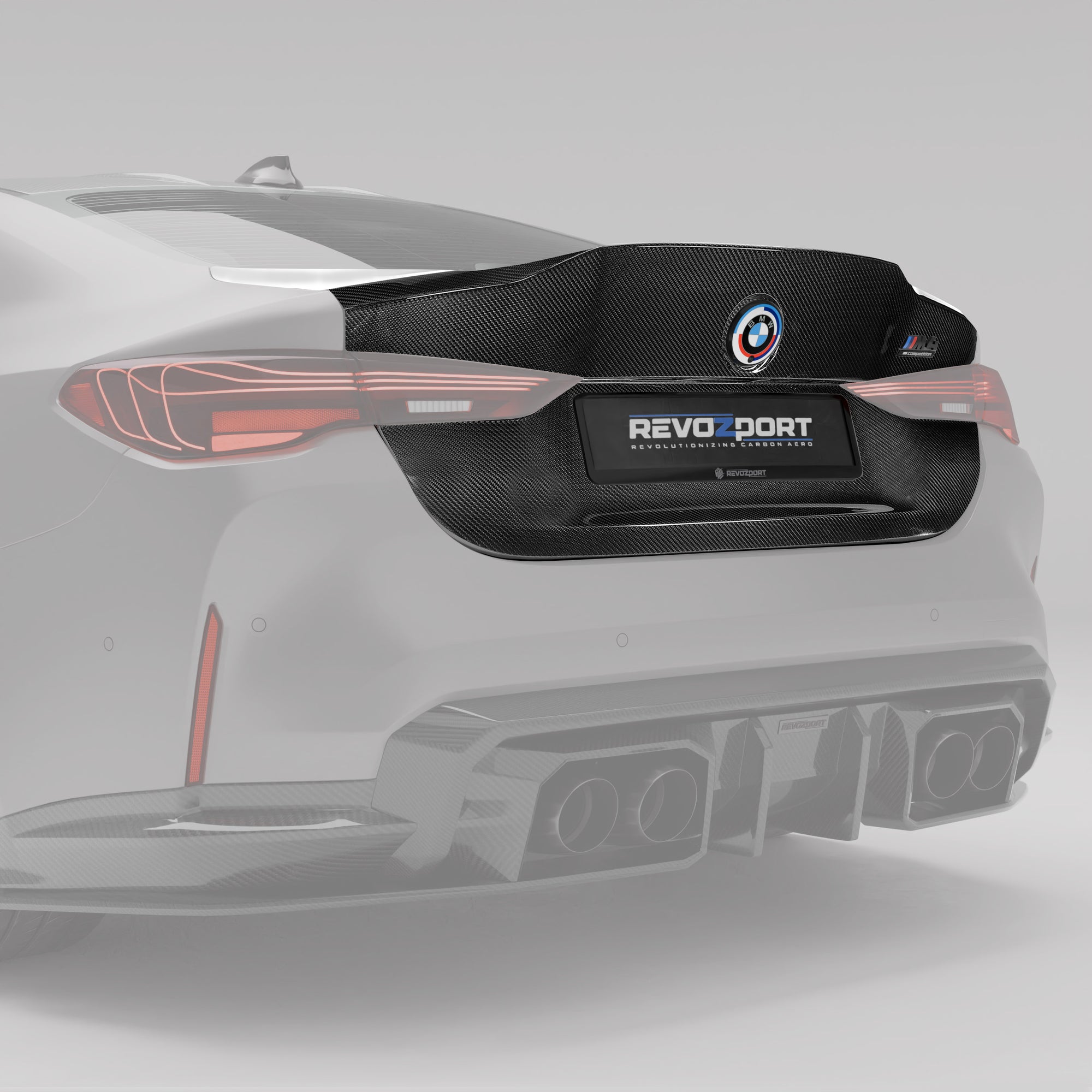

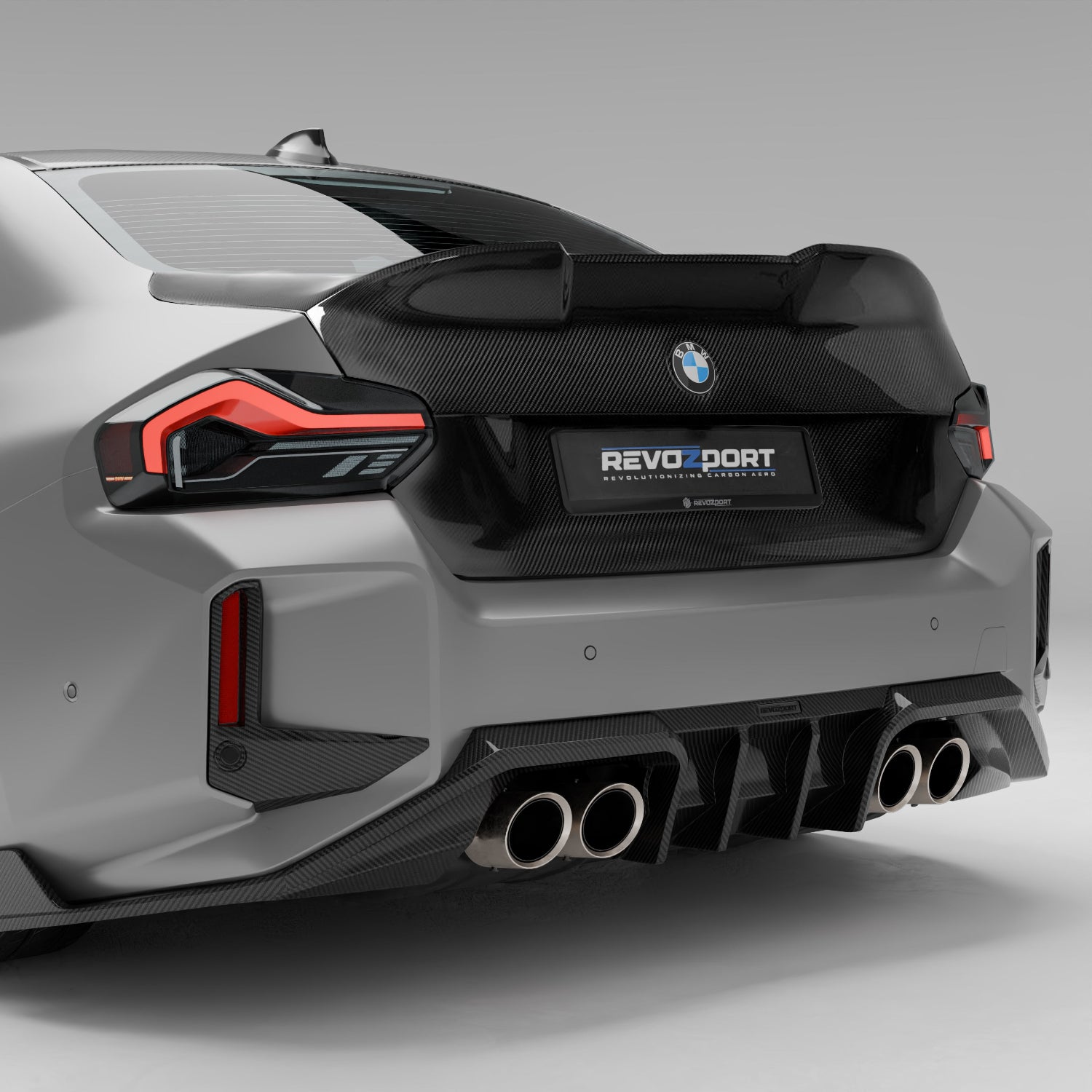

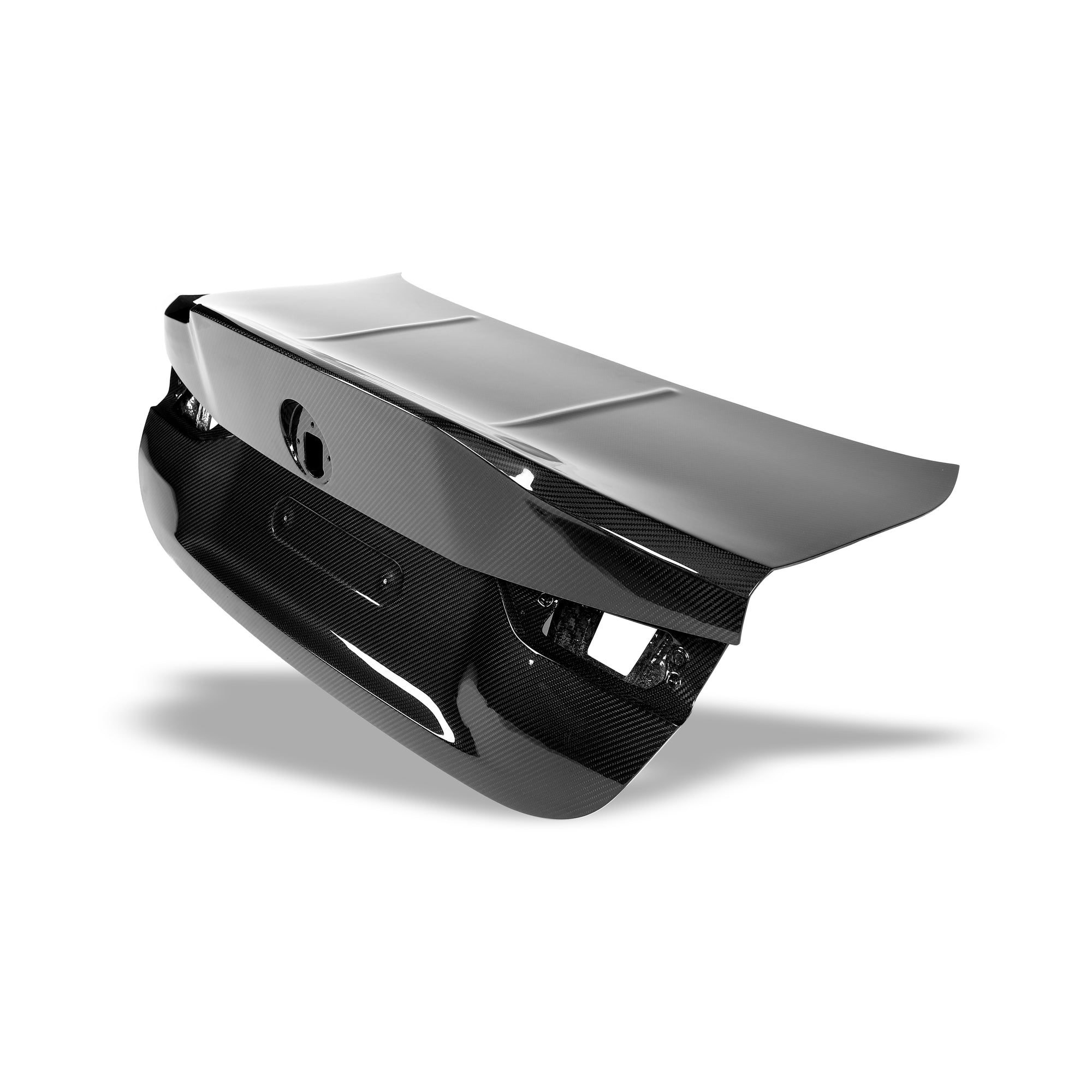

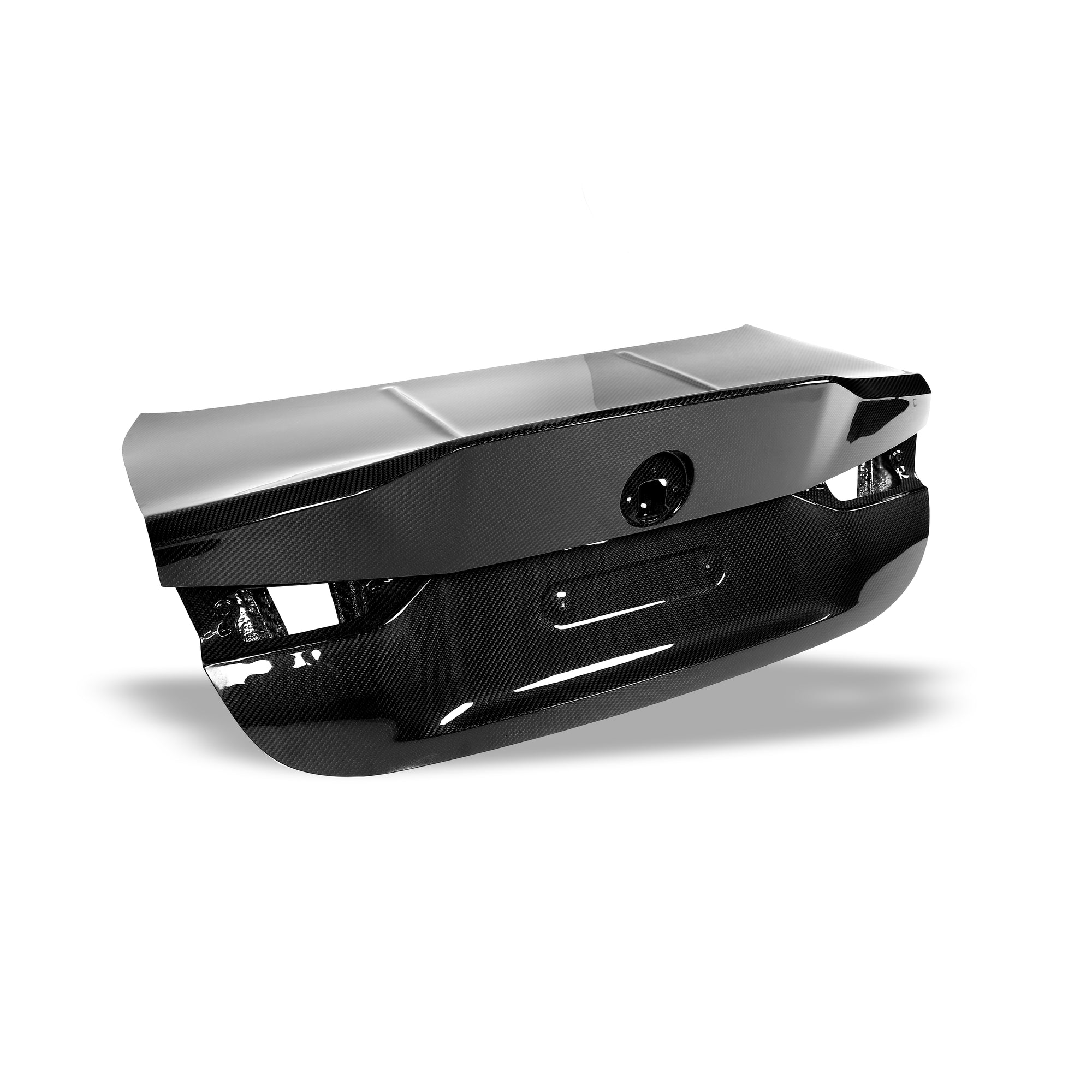

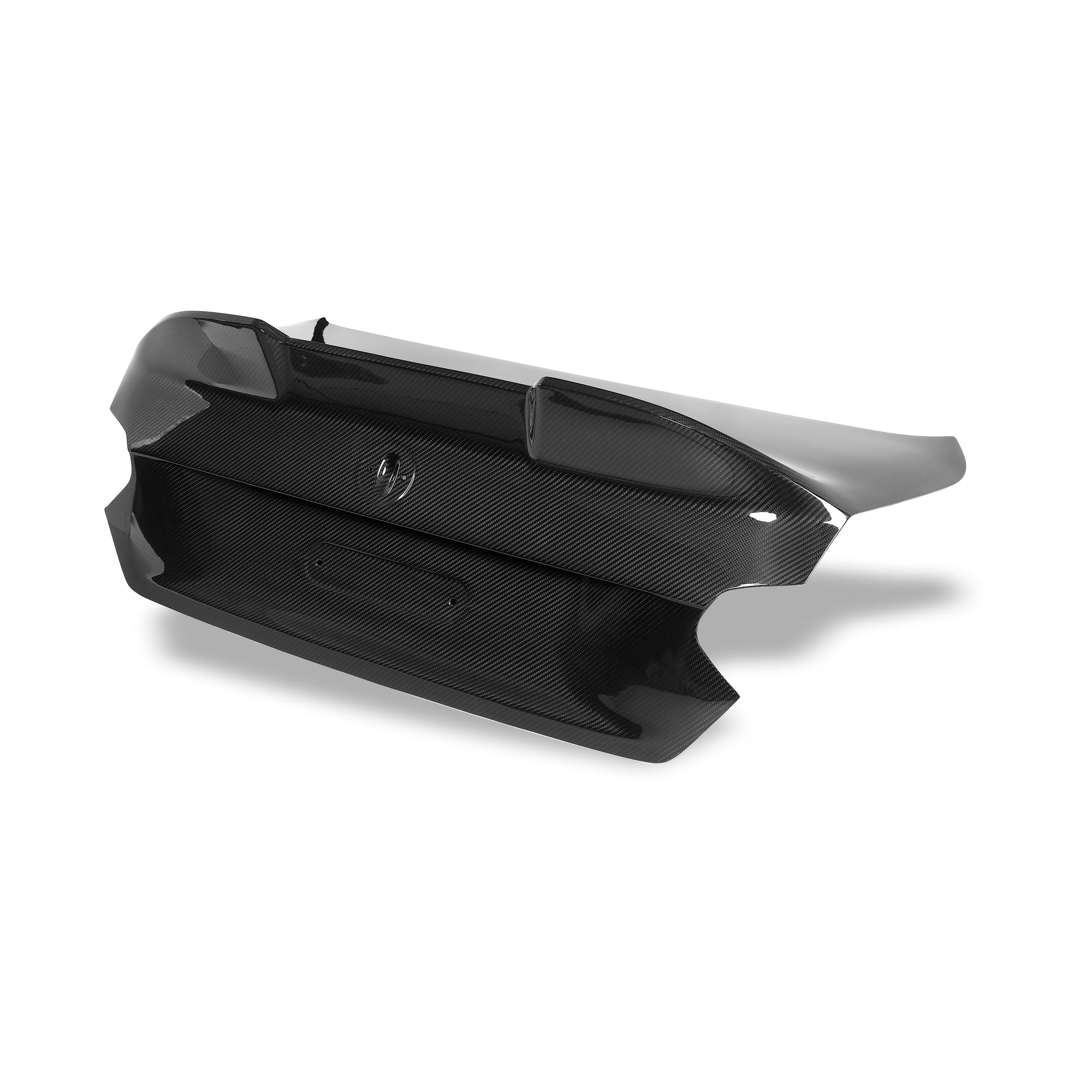

A carbon fiber trunk is worth considering when lower panel mass, an exposed-carbon rear deck, and a more focused build justify the additional fitting work. It replaces the factory trunk lid, so panel alignment, transferred hardware, opening control, and weather sealing all affect the result. This guide compares carbon and OEM trunk lids by weight, fitment, hinges, springs, struts, locking functions, installation, and daily use. You will see where a full replacement adds value and when a spoiler may better suit a restrained OEM+ build. How Does a Carbon Fiber Trunk Compare With an OEM Trunk Lid? A carbon fiber trunk usually provides lower panel mass and a complete exposed-carbon rear deck. An OEM trunk lid provides the factory reference for panel alignment, integrated hardware, weather sealing, and opening control. Comparison Area Carbon Fiber Trunk OEM Trunk Lid Weight Usually lighter, with the actual saving determined by the vehicle, panel construction, and transferred hardware Often heavier, although the factory material varies by model Appearance Creates a complete exposed-carbon rear deck Preserves the original painted finish Fitment Uses model-specific geometry and requires dry fitting and final adjustment Provides the factory panel-gap and surface-height reference Hardware Usually requires the transfer of selected OEM components Arrives with the vehicle’s original systems integrated Opening Behavior Requires testing of the hinges, torsion springs, gas struts, and closing force Uses opening assistance matched to the factory lid Weather Sealing Relies on consistent weather-strip contact, latch height, rubber-stop position, and accessory sealing Uses the factory body, lid, and weather-strip combination Installation Requires panel fitting, hardware transfer, alignment, and function testing Retains the factory-installed panel and integrated systems Best Use Weight-focused, street-performance, track, and show builds Factory convenience, original finish, and service simplicity A complete trunk replacement suits a build that needs a stronger rear-deck change than a spoiler can provide. RevoZport’s carbon fiber trunk collection provides model-specific options designed to integrate with the vehicle’s rear profile. A spoiler remains the more restrained option when the goal is a smaller carbon accent. The OEM trunk lid then retains its original locking, wiring, sealing, trim, and opening system. How Much Weight Can a Carbon Fiber Trunk Save? Weight savings depend on the construction of the factory trunk and the hardware transferred to the carbon replacement. A like-for-like measurement provides the most reliable result. Why Weight Savings Vary by Vehicle Factory trunk lids may use steel, aluminum, or composite construction. Carbon replacements also vary in their outer skin, inner structure, reinforcement, and integrated spoiler design. The final installed weight includes the panel and its transferred equipment, such as the latch, wiring, camera, lights, trim, seals, and badges. This makes an assembled trunk heavier than its bare-panel figure. Shipping weight includes packaging and protective materials. A valid trunk-weight comparison uses measured bare-panel or assembled-panel figures for both lids. Like-for-Like OEM Weight Comparison A like-for-like comparison weighs the bare OEM and carbon lids on the same scale under the same conditions, with the hinges, latch, camera, lights, wiring, trim, spoiler, seals, badges, and packaging removed from both panels. A second measurement can compare both assembled lids with the same accessory configuration. Keeping bare-panel and assembled results separate provides a clear vehicle-specific comparison. How Weight Reduction Affects Performance A lighter trunk reduces total vehicle mass. The effect depends on the measured saving, the vehicle’s curb weight, and the other lightweight components included in the build. The trunk sits relatively high and toward the rear, so its weight can form part of a wider reduction program alongside lighter panels, seats, wheels, or exhaust components. According to the U.S. Department of Energy’s Lightweight Materials for Cars and Trucks, a 10% reduction in total vehicle weight can improve fuel economy by 6% to 8%. That figure applies to vehicle-level weight reduction, while the contribution of one trunk depends on its measured weight difference. An SAE International review of automotive lightweight materials also considers durability, appearance, assembly, manufacturing, and cost alongside mass reduction. Vehicle-specific testing is required to measure any change in acceleration or lap time. Will a Carbon Fiber Trunk Fit and Function Like the OEM Trunk? A model-specific carbon fiber trunk can retain the vehicle’s normal locking, lighting, camera, sealing, and opening functions. The final result depends on careful dry fitting, correct transfer of the OEM components, and adjustment at the hinges, latch, and rubber stops. Panel Alignment and OEM Mounting Points Fit the bare carbon trunk to the OEM hinge and latch locations before transferring its accessories. Keep the fasteners lightly tightened at this stage so the panel can move during the initial alignment. The trunk should sit evenly between the rear quarters and tail lights, with consistent panel gaps and surface height on both sides. The opening path and latch engagement also need to work through their full range before the electrical parts, seals, and interior trim move across. Small hinge adjustments control the left-to-right and front-to-rear position. The latch and rubber stops then set the resting height, closing effort, and weather-strip compression. These areas work together, so changing one position may require a second check of the surrounding gaps. Carbon composite panels require controlled mounting pressure during this process. Support the lid while making adjustments and use the product-specific installation requirements for any drilling, trimming, slotting, or additional hardware. Hinges, Springs, Struts and Opening Behavior The OEM hinges and latch can normally remain in use, although both may need adjustment after the lighter lid is fitted. The torsion springs or gas struts may also need recalibration because the factory opening system was set for the original trunk weight. A lighter carbon fiber trunk may rise too quickly, rebound at full opening, or require extra force to close when the original opening assistance remains unchanged. Excess spring or strut force can also increase the load around the hinge area. During the first opening cycles, hand support allows the lid speed and full opening path to be assessed safely. A balanced setup should rise smoothly, remain controlled near full opening, and close without excessive force. Some vehicles allow a reduction in torsion-spring preload, while others may require lower-force gas struts. The correct setting depends on the hinge geometry, installed trunk weight, and opening system used by the specific vehicle. Latch, Wiring and OEM Functions Once installed, a carbon fiber trunk becomes part of the vehicle’s mechanical and electrical systems. The hinges and latch provide the mechanical foundation, while the body-side striker normally remains on the vehicle and may need a small positional adjustment. Depending on the model, the transferred mechanical parts may include the latch, emergency release, weather seal, and rubber stops. Electrical equipment can include the camera, licence-plate lights, exterior opening button, wiring harness, rubber grommets, and a trunk-mounted third brake light. Interior trim and badges may also move to the replacement lid. The wiring harness needs enough movement for the trunk to open fully without pulling on a connector. Factory-style routing, clips, and rubber grommets help keep the cable away from panel edges and the hinge path. Latch height influences closing effort, panel gaps, surface flushness, and weather-strip pressure. Small adjustments at the hinges, latch, and rubber stops establish correct engagement before the opening and closing behavior is tested again. Final function testing covers the key, remote release, exterior button, emergency release, camera, licence-plate lights, third brake light, and any powered opening function fitted to the vehicle. Weather Sealing and Water Resistance A carbon fiber trunk relies on continuous contact between its sealing flange and the OEM weather strip. Panel alignment, latch height, rubber-stop position, accessory openings, and seal placement all influence water resistance. Seal contact is assessed around the corners and near the wiring, camera, lights, and spoiler mounting points, where changes in panel height or latch position can affect compression.A paper-strip pull test compares sealing pressure by measuring the resistance around the opening. Similar resistance at each position indicates more consistent contact between the flange and weather strip. Removable transfer material can reveal the contact pattern in areas that are difficult to judge visually. Once contact is even, a low-pressure water test from the roof toward the rear checks the seal under controlled conditions. The trunk lining, latch area, wiring openings, camera mount, licence-plate lights, and tail-light area provide the main inspection points for moisture. Small adjustments to the hinges, latch, rubber stops, or weather-strip position can correct the entry path before the water test is repeated. What Does Carbon Fiber Trunk Installation Involve? Carbon fiber trunk installation covers removal of the OEM lid, dry fitting of the bare carbon panel, transfer of the factory components, final alignment, and complete function testing. Following that sequence keeps the panel easier to position and leaves room for adjustment before final tightening. Preparing the Vehicle Before removal, the original panel gaps, hinge positions, latch height, and wiring route provide the reference for the replacement installation. Clear photographs preserve the cable routing, hardware orientation, trim position, and surface alignment for reassembly. The rear glass, tail lights, bumper, and adjacent painted panels require protection during removal. Two-person support keeps the OEM trunk stable while the wiring and hinge fasteners are disconnected.This keeps the panel stable and reduces the chance of a corner contacting the body or loading the rear glass unevenly. Fitting the Bare Carbon Panel Initial fitment uses the bare carbon lid before the camera, lights, wiring, trim, seals, or badges are transferred. This keeps the panel easier to support and preserves clear access to the hinges, latch area, and surrounding gaps. The basic geometry begins with the left-to-right and front-to-rear position, followed by surface height and latch engagement. Lightly tightened fasteners leave room for small corrections during this stage. Once the bare panel follows the surrounding body lines, transfer the factory equipment in an order that preserves access to the mounting points. Retain the original cable route where the replacement trunk provides suitable clips, channels, and grommet locations. Completing the Final Tests Final fastener torque follows successful testing of the electrical functions, opening speed, closing force, latch engagement, seal contact, and water resistance. This sequence allows small corrections without repeatedly removing the transferred components. Professional installation is the preferred route for most complete trunk replacements. A technician with composite-panel experience can support the lid correctly, distribute mounting load, and tighten the hardware without concentrating force in the laminate. An experienced owner may complete the installation with suitable tools, model-specific instructions, and a second person to support the panels. Product-specific fitment and installation information defines the required hardware and panel work before the OEM trunk is removed. Which Build Directions Suit a Carbon Fiber Trunk? A carbon fiber trunk offers the most value when lower panel mass or a complete exposed-carbon rear deck already supports the build direction. Owners seeking one restrained carbon accent may find that a trunk spoiler achieves the intended visual change with less installation work. Track and Performance Builds A carbon fiber trunk fits naturally into a track or performance build that already includes a planned weight-reduction program. Its measured saving can contribute to a larger total alongside lighter seats, wheels, exhaust components, or other exterior panels. Street-performance builds may place equal value on visual continuity. A carbon trunk can connect a carbon fiber hood, rear diffuser, spoiler, and related exterior parts into a more cohesive carbon package. Street and Show Builds A full exposed-carbon rear deck creates a stronger visual change than a spoiler and gives the rear profile a more complete material transition. This direction suits street and show builds where finish quality, panel alignment, and integration with the surrounding body lines carry as much importance as the scale reading. Regular road use places additional emphasis on locking, weather sealing, lighting, camera operation, and controlled opening. A well-fitted trunk should preserve these functions while supporting the intended exterior design. Visual-Only Builds A trunk spoiler provides a more restrained option when the goal is a single carbon accent. It retains the OEM lid, hinges, latch, wiring, interior trim, and original weather-strip relationship. The reduced installation scope also makes it easier to return the vehicle to its factory appearance. This direction can work well for an OEM+ build that needs a subtle rear detail instead of a complete exposed-carbon deck. What Defines the Right Carbon Fiber Trunk Setup? The exact vehicle application, panel construction, transferred OEM components, opening assistance, and installation requirements determine how well the carbon trunk fits the vehicle and functions in regular use. Exact Vehicle Fitment Correct fitment depends on the vehicle’s model year, body style, and facelift status. Sedan, coupe, and touring versions can use different rear openings even when they share the same model badge. Factory equipment also affects compatibility. A camera, power-opening system, trunk-mounted brake light, exterior release switch, or other lid-mounted feature may require a dedicated mounting provision. The model-specific product page defines the complete vehicle application and supported equipment. These details establish the basis of the installation plan. Panel Construction and Weight Data The product specification should identify whether the trunk is a complete replacement panel with both outer and inner structures. Its construction may include an exposed-carbon outer skin, inner frame, reinforcement, mounting areas, and provisions for the transferred hardware. Any weight figure should identify the measurement configuration. Bare-panel weight, assembled trunk weight, and packaged shipping weight describe different conditions and cannot be compared directly. The most useful measurement records the scale conditions and the hardware included with each lid. Evaluate the trunk through its construction, fitment, transferred components, and like-for-like measured weight. Hardware and Installation Planning Installation planning begins with the factory components that transfer to the carbon trunk while the OEM lid remains available as a reference. Depending on the vehicle, these parts may include the hinges, latch, emergency release, camera, lights, opening button, wiring, weather seal, rubber stops, interior trim, and badges. The opening system forms part of the same installation plan. Factory torsion springs or gas struts may require adjustment when the carbon lid is lighter than the original panel. The product-specific installation information should also identify any drilling, trimming, slotting, or additional hardware. A composite-panel installer can then plan the fitting method and mounting load around the actual trunk construction. Review How to Choose a Carbon Fiber Body Kit when the trunk forms part of a wider exterior program. Consistent construction, finish, fitment, and installation quality help the completed exterior feel cohesive. Is a Carbon Fiber Trunk Worth the Upgrade? A carbon fiber trunk is worth considering when measured weight reduction or a complete exposed-carbon rear deck supports the direction of your build. Track and performance cars gain the most value when the trunk forms part of a wider lightweighting program, while street and show builds may place more emphasis on finish, body-line integration, and a cohesive rear profile. The selected trunk should match the exact vehicle application, with transferred hardware, opening assistance, sealing, and installation planned as one system. RevoZport’s model-specific carbon fiber trunk collection provides a focused starting point for owners who want the completed panel to retain the vehicle’s everyday functions while delivering a stronger carbon exterior. Frequently Asked Questions Is a Carbon Fiber Trunk Lighter Than an OEM Trunk? A carbon fiber trunk is usually lighter, although the saving varies with the factory material, panel construction, and transferred hardware. A like-for-like comparison uses the same scale for both bare lids and matching accessory configurations for the assembled lids. Can a Carbon Fiber Trunk Use the Factory Hinges and Latch? Model-specific carbon trunks normally use the factory hinge and latch locations. Dry fitting and small adjustments at the hinges, latch, and rubber stops help set the panel gaps, surface height, closing force, and seal compression. Do I Need Different Trunk Springs or Struts? The factory springs or struts may remain suitable after adjustment. Lower spring preload or lower-force struts may be needed when the lighter lid rises too quickly, rebounds at full opening, or requires excessive closing force. Will a Carbon Fiber Trunk Leak? A properly aligned carbon trunk should work with the OEM weather strip. Consistent flange contact, correct latch height, adjusted rubber stops, and sealed accessory openings support water resistance. A low-pressure water test provides the final seal assessment. Does a Carbon Fiber Trunk Require Professional Installation? Professional installation is recommended for most complete trunk replacements. The work involves two-person panel handling, dry fitting, OEM component transfer, alignment, electrical testing, opening control, and water testing. Composite experience also helps distribute mounting load correctly.
