Unsprung Weight Explained: Why Wheel Weight Is Only Part of the Story

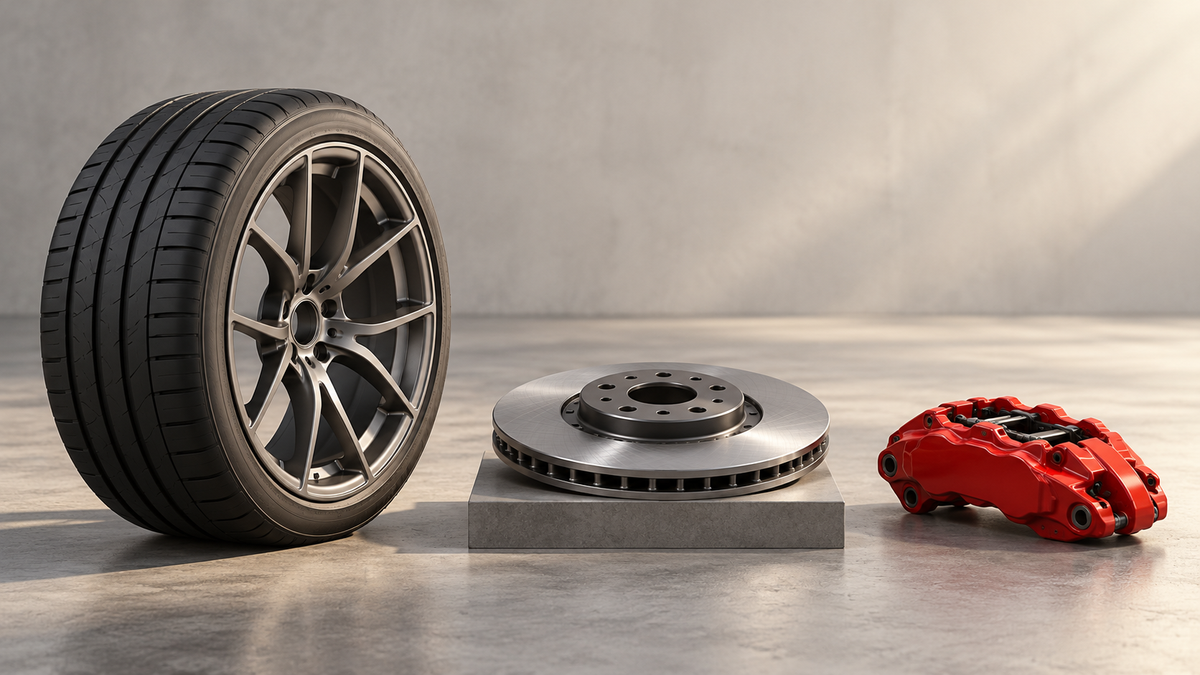

Unsprung weight is the mass that moves with a wheel as the suspension responds to the road, rather than being carried above the suspension springs. On a conventional car, that includes the tire, wheel, hub, upright and wheel-mounted brakes. Reducing it can help the wheel assembly respond to uneven surfaces, but a lighter assembly does not automatically deliver more grip, better comfort or shorter stopping distances. The useful distinction is between three questions: how much mass moves with the wheel, how much inertia the rotating parts have, and whether the complete setup works better on your car. A lighter wheel can improve the first two while an unsuitable tire compromises the third. Before comparing upgrades, separate those questions and measure the complete assembly. What Counts as Unsprung Weight? Think about what happens when one tire crosses a small bump. The wheel and its attached components move relative to the body. The suspension spring and damper connect that moving assembly to the supported structure above it. Components on the wheel side contribute to unsprung mass; the body, cabin and most chassis-mounted equipment contribute to sprung mass. “Weight” is the familiar automotive term, although engineers normally model mass in kilograms. Neither category is a judgment about whether a component is useful. A brake caliper has an essential job even though its mass moves with the wheel. Some parts sit between the two categories. Suspension links, halfshafts, springs and dampers do not necessarily move as rigid units with either the body or the wheel. Their effective contribution depends on geometry, mass distribution and the model being used. Assigning exactly half of every such component to unsprung mass is a rough convention, not a universal measurement rule. Inboard brakes and unusual drivetrain layouts also change the accounting. Sprung, Unsprung and Rotating Mass Are Different Categories Unsprung mass describes suspension motion. Rotational inertia describes resistance to changing angular speed. A component can belong to both categories, just one, or neither. For a conventional arrangement: Component Suspension category Rotating component? Tire and wheel Unsprung Yes Wheel-mounted brake disc Unsprung Yes Wheel-mounted fixed caliper Unsprung No Body panel Sprung No Flywheel in a chassis-mounted engine Sprung Yes, at engine speed A wheel and a wheel-mounted caliper both contribute to unsprung mass, but only the wheel rotates around the axle. This distinction matters when evaluating lightweight modifications. A lighter body panel can reduce vehicle mass without reducing unsprung mass. A lighter caliper reduces unsprung mass without removing wheel-speed rotational inertia. Neither saving should be presented as interchangeable with removing the same mass from a tire tread. How Does Unsprung Weight Affect Performance? A road disturbance has to accelerate the wheel assembly vertically. Its mass, the tire’s stiffness and the suspension’s spring and damping forces determine that response together. Lower unsprung mass changes the dynamics and can help control tire-load variation on uneven surfaces. The benefit depends on the disturbance and the rest of the setup. A useful starting point is the two-mass quarter-car model documented by SINTEF. It separates the supported body mass from the wheel-side mass, connects them through a suspension spring and damper, and represents the tire with another spring. This makes clear why wheel mass cannot be judged independently of tire stiffness and suspension tuning. The two-mass model separates body motion from wheel motion. It is a simplified explanation, not a prediction of a particular car’s grip. Comfort and road holding also measure different things. Body acceleration matters to occupants; variation in tire force matters to contact with the road. Improving one response at one disturbance frequency does not establish an improvement everywhere. Tire construction, inflation pressure, spring rates and damping can change the result. Less visible body movement is not proof of more grip, either. Our guide to weight transfer in cars explains another part of that distinction. For wheel upgrades, assess the tire and suspension as a system instead of treating wheel weight as a standalone handling score. Does One Pound of Unsprung Weight Equal Seven or Ten Pounds? There is no universal conversion. Claims that one pound of unsprung weight “equals” several pounds elsewhere combine different effects into a number without specifying what is being compared. Acceleration energy, vertical wheel motion, ride comfort and lap time are different outcomes. For vertical suspension response, location and the suspension model matter. For accelerating a rotating wheel, both its mass and the distribution of that mass matter. For a timed driving result, tires, power, gearing, surface and driver introduce additional variables. One fixed multiplier cannot describe all three. A more useful question is: equal in which calculation, under which assumptions? If those details are missing, compare the actual mass saving first and leave the claimed equivalent out of the purchasing decision. Why the Location of Wheel Mass Matters Rotational inertia depends on distance from the rotation axis. Moving a given amount of mass farther outward increases its contribution to inertia. Two assemblies with the same scale weight can therefore require different amounts of energy to reach the same wheel speed. Equal added mass at different radii produces different rotational inertia. These conceptual disks do not represent measured wheel designs. OpenStax’s explanation of rolling motion separates translational energy from rotational energy. For an ideal assembly rolling without slipping, a useful comparison is: E = ½mv² + ½Iω², with ω = v/R. Here, m is mass, I is rotational inertia about the axle, v is road speed and R is rolling radius. At the same rolling radius and speed, the kinetic-energy saving from a lighter assembly can be expressed as an equivalent translating mass: Equivalent mass saving = Δm + ΔI/R². For a hypothetical one-corner change, suppose mass falls by 1.00 kg, inertia falls by 0.040 kg·m², and rolling radius stays at 0.32 m. The rotational term is 0.040 ÷ 0.32², or about 0.39 kg. The total energy-equivalent saving is about 1.39 kg. The physical mass saving is still 1.00 kg. This is an illustrative calculation, not a new fixed multiplier. It does not predict comfort, wheel hop, braking distance or lap time. It also does not transfer directly to an engine flywheel rotating through gearing. If only assembly weight is available, report that saving; do not invent an inertia value to produce a more impressive equivalent. How to Calculate Unsprung Weight Reduction When only the wheel-and-tire package changes, you can measure that change without determining the car’s entire unsprung mass. Compare equivalent complete assemblies, using the same scale and a consistent weighing method. Tare the scale with any cradle or support in place. Once the assembly is secure, remove hand contact and wait for a stable reading. Record the original assembly. Include the wheel, tire, valve or TPMS hardware, and balance weights. Measure the replacement on the same basis. Avoid comparing a bare replacement wheel with a fully assembled original. Subtract replacement mass from original mass. Keep front and rear measurements separate on a staggered setup. Add the actual savings across all four corners. Label the result as assembly mass reduction, not an estimated horsepower gain. Position the assembly securely, tare any support, and release hand contact before reading the scale. A lighter rim can be partly offset by a heavier tire. For example, a replacement wheel that saves 2 kg paired with a tire that adds 1 kg yields a net saving of 1 kg at that corner. If all four changes are identical, the total is 4 kg. That simple subtraction is more useful than advertising the rim’s saving while overlooking the tire. If brakes, hubs or suspension parts also change, record each change separately and identify how the component moves. Corner scales measure the load supported at each tire; they do not independently separate sprung from unsprung mass. A full unsprung-mass estimate needs component measurements and a clearly stated treatment of parts that move between body and wheel. How to Reduce Unsprung Weight Without Losing Capability Begin with fitment and function. Wheel diameter, width, offset, load capacity, brake clearance and tire compatibility must suit the car and its use. Our wheel specification guide for track driving provides a useful framework before comparing weight. Construction method is another input, not the complete answer. A forged wheel may offer a useful strength-to-mass solution, but the actual design, dimensions, load requirements and validation still matter. Compare compatible finished specifications rather than assuming every forged wheel is lighter than every cast alternative. See our forged versus cast wheel guide for that broader comparison. Brake changes need particular care. A lighter disc may reduce rotating and unsprung mass, but removing material from the friction ring can also reduce its capacity to absorb heat. A different rotor construction may manage that tradeoff differently. Check the braking system’s thermal requirements and compatibility rather than treating the lightest disc as the best option. Brake mass has a thermal job as well as a dynamic cost. Evaluate the complete braking system before chasing a lower weight. The same reasoning applies to tires: construction, dimensions and load capability matter alongside mass. A lighter package that sacrifices the required tire characteristics is not automatically an upgrade. Record the function you need first, then look for a compatible reduction. How Much Unsprung Weight Makes a Difference? There is no reliable universal threshold in pounds or kilograms that every driver will feel. The size of the original assembly, percentage change, road inputs, tires and suspension all affect the response. A measurable scale difference establishes a mass change; it does not establish a perceptible or worthwhile performance improvement. For a useful comparison, keep tire model and condition, pressures, alignment, loading and test conditions as consistent as possible. Record any unavoidable differences. A different tire compound or size can dominate the impression attributed to a lighter wheel. If you need performance evidence, define the outcome before testing: ride response on a repeatable surface, tire-load behavior with suitable instrumentation, or consistent timed results in a controlled environment. Report the conditions and uncertainty. Without that evidence, the honest conclusion is a documented mass reduction with potential dynamic benefits, rather than a guaranteed performance gain. Unsprung Weight FAQ Is unsprung weight bad? It is an unavoidable part of supporting, steering and braking the car. Reducing unnecessary mass can be useful, but the components still need adequate strength, durability and operating capacity. Do lighter wheels improve braking? They can reduce the energy associated with accelerating and decelerating the rotating assembly. That alone does not establish a shorter stopping distance: tire grip, road conditions, braking-system behavior and the complete vehicle determine the result. Can an unsprung weight calculator give an exact performance gain? A calculator can total measured component changes. An energy calculation also needs inertia and rolling radius. Neither calculation alone determines grip, comfort or elapsed time. Does carbon bodywork reduce unsprung weight? Bodywork attached to the supported structure normally contributes to sprung mass. A lighter body panel can reduce overall mass, but that saving should not be counted as a wheel-side reduction. Technical Sources OpenStax, University Physics Volume 1: Rolling Motion — rolling kinematics and translational plus rotational energy. OpenStax: Moment of Inertia and Rotational Kinetic Energy — mass distribution about an axis. SINTEF, Quarter-Car Model — simplified two-mass suspension model and its assumptions. Baer / Holley, “Rotational & Unsprung Weight: How Less Mass Improves Performance” — component distinctions and the thermal tradeoff of lighter brake discs. Its weight-multiplier rule is not used as a calculation method here.

A vehicle roll center is a virtual reference derived from suspension geometry, used to analyze lateral force transmission and body roll. It is not the center of gravity, a physical hinge, or a measurement of how far the body leans. Front and rear suspension geometry are considered separately, and their roll-center positions can change as the suspension moves. For a lowered road or track car, the useful question is whether the revised geometry helps the tires work consistently. A lower body, a higher roll center, or less visible lean does not prove that grip improved. Understanding the construction, its limitations, and the surrounding setup makes the number useful. Roll Center vs Body Roll and Center of Gravity Body roll is the vehicle body's angular movement relative to the road during cornering. Roll center describes a geometric reference associated with the suspension. They answer different questions: one describes motion; the other helps explain how the suspension carries loads. The center of gravity, or CG, describes mass distribution. The instant center, or IC, describes the instantaneous motion of a suspension assembly in a particular view. In a conventional front-view construction, each side's instant center helps locate the axle's geometric roll center. It is an intermediate construction point, not another name for the final result. Term What it describes Common mistake Center of gravity A reference for the vehicle's mass distribution Treating it as the suspension's geometric pivot Instant center Instantaneous suspension motion in the chosen analysis plane Calling the control-arm intersection the roll center Roll center A suspension reference obtained from the chosen model Treating it as a fixed physical hinge Roll axis The reference line joining front and rear roll centers Assuming it must be horizontal The front and rear values need not match. Also, a diagram of the roll axis is a model, not proof that the real sprung body follows that line as a rigid rotation axis in every maneuver. Compliance, tire deflection, and suspension motion complicate the actual response. How to Find Roll Center from Suspension Geometry A useful measurement starts with a defined vehicle condition. Record the intended working ride height, tire condition, steering position, and loading. Use a level reference plane and a consistent coordinate system. A number calculated with the wheels hanging free is not automatically relevant to the car sitting on its tires. Identify the actual pivot centers, rather than measuring to a convenient bolt head or body-panel edge. Record tire contact-patch locations and the relevant suspension hardpoints. Keep left and right measurements separate until symmetry has been established. For three-dimensional layouts, obtain the correct projected or equivalent geometry instead of tracing the visible outline of a control arm. The following methods describe simplified front-view constructions. They explain the logic behind a roll center diagram; they are not substitute workshop instructions for modifying suspension components. High Performance Academy's roll-center lesson demonstrates the distinction between locating an instant center and constructing a roll center. Double Wishbone Suspension In a suitable planar representation, extend the upper and lower arm lines until they intersect. That intersection is the instant center for that side. Draw a line between the instant center and the center of the tire contact patch. Repeat the construction on the other side. This single-side construction locates IC. The contact-patch line is then combined with the opposite side's construction to locate the axle's geometric roll center. The intersection of the two contact-patch-to-IC lines gives the geometric roll center. In a symmetric static arrangement it lies on the vehicle centerline. Do not force that centerline assumption onto an asymmetric or displaced suspension condition. Nearly parallel construction lines also make the intersection sensitive to small measurement errors. MacPherson Strut Suspension A MacPherson strut has no upper wishbone to extend. In the simplified front-view construction, use the lower-arm line and a line through the upper strut mount perpendicular to the strut axis. Their intersection locates the instant center. Connect that point to the tire contact patch and repeat for the other side. This idealized vertical-strut example makes the perpendicular construction clear: the upper line is horizontal. IC is the instant center; CP is the contact point. For an inclined strut, the upper line must change angle to remain perpendicular. Use the actual kinematic layout. A split lower-link arrangement, unusual steering-axis geometry, or substantial compliance can require a more complete model. A familiar-looking strut does not make every simplified sketch equally accurate. Solid Axles and Other Rear Suspension Layouts Do not use the double-wishbone method simply because the rear suspension has several links. A rigid axle's lateral locating arrangement needs to be understood first. A torsion or twist beam introduces structural behavior that differs from a rigid axle. Multi-link independent systems can require three-dimensional kinematic analysis. For those layouts, identify the suspension architecture and use a model or manufacturer information appropriate to it. The word “beam” alone does not tell you which construction to use, and wheel-center height is not a universal answer. How Ride Height Changes the Roll Center Question Lowering a car changes the relationship between body-side suspension pivots and the wheels. The center of gravity may move down, but the roll center follows the geometry rather than moving down by the same amount. The outcome depends on the layout and its operating position. This is why “lower CG means less body roll” is an incomplete prediction after a suspension change. If the geometric roll reference changes unfavorably, the benefit of a lower CG can be offset. New springs or anti-roll bars may also change the measured roll response, making it difficult to attribute the result to geometry alone. A repeatable ride-height reference helps define the vehicle's working condition. It does not reveal the roll-center height without suspension geometry data. Our coilover track setup guide explains how to establish a baseline and test changes methodically. Record the mechanical setup before interpreting any new geometric result. Available compression and rebound travel also matter. A car that reaches its bump stops earlier may behave differently even if a static roll-center calculation looks acceptable. Check alignment, tire and body clearance, and the usable suspension range alongside ride height. Low vs High Roll Center and the Grip Tradeoff In a simplified steady-state model, raising the roll center toward the sprung-mass CG reduces the roll moment carried through elastic suspension elements. At the same time, it increases the geometric share of lateral load transfer. Lowering it changes that division in the other direction. Claude Rouelle's load-transfer analysis makes the important distinction: reducing the elastic contribution does not make total load transfer disappear. In its simplified two-dimensional example, total transfer remains governed by mass, lateral acceleration, CG height, and track width while the transfer paths change. That model explains why a flatter-looking car is insufficient evidence of more grip. A complete car adds front-to-rear load sharing, tire behavior, compliance, and transient response. There is no universal “best” front and rear roll-center height that follows from appearance alone. Higher roll-center geometry can also introduce jacking, a tendency for suspension forces to lift the sprung body. Its significance depends on the layout and operating condition, adding another reason not to maximize roll-center height in isolation. Read our weight transfer guide for the underlying distinction between vehicle motion and tire loading. If a setup changes handling balance, describe the actual entry, midcorner, or exit behavior before diagnosing the cause. Why One Static Number Is Not Enough The control arms do not hold the same angles throughout compression, rebound, and roll. Their instant centers move, and the geometric roll center can move vertically and laterally. Tony Foale's suspension geometry explanation describes why the construction applies to an instantaneous position. A useful comparison therefore follows the geometry through the travel range the car actually uses. Check for abrupt movement, sensitivity to small hardpoint changes, and asymmetry between relevant conditions. A seemingly attractive static value may conceal behavior elsewhere in the operating range. Spring and damper hardware influences the response, but it does not replace the hardpoint geometry needed to locate a roll center. Keep roll stiffness separate from roll-center location. Roll stiffness describes resistance to roll; the roll center is a geometric or force-based reference. Changing a spring rate does not, by itself, move the rigid hardpoints at an identical imposed suspension position. It can change the equilibrium position the car reaches under load, which then changes the geometry being evaluated. What a Vehicle Roll Center Calculator Can Tell You A calculator can make a specified construction repeatable. It cannot recover missing hardpoints from a photo of a lowered car. Before trusting its output, check the following: Definition: Does it report a kinematic construction or a force-based result? Inputs: Are coordinates, units, contact patches, and projection conventions correct? Condition: Does the model represent the chosen ride height, steering position, and loading? Scope: Does it model the actual suspension architecture and account for any relevant compliance? Sensitivity: Do small input changes produce a large change in the result? RACE Software's Roll Centre Height Force Based Suspension KPI describes a method using lateral contact-patch force and the resulting force response. That is a reason to check definitions before comparing numbers from different tools. Its overview does not establish an accuracy guarantee for another calculator. If measurements are incomplete, report the missing inputs instead of presenting a guessed millimeter value. Likewise, do not compare two diagrams built at different wheel travel positions and call the difference a confirmed improvement. What to Check After a Ride Height Change Start with the mechanical condition and the revised geometry. Have qualified personnel check alignment, clearances, travel, and the suitability of any changed components. Do not choose ball-joint extensions or relocate mounting points from a generic internet diagram. For controlled track evaluation, compare the same driver, tires, loading, and representative conditions. Record the setup, describe the handling phase that changed, and compare repeatable observations rather than one fast lap or a photo of reduced lean. Combine geometry information with a repeatable setup record. The vehicle's exterior appearance cannot establish its hidden suspension coordinates or performance result. Our understeer vs oversteer guide helps separate the observed handling response from a proposed explanation. Persistent instability needs diagnosis; it is not an instruction to keep raising or lowering one roll center. For a REVOZPORT build, keep bodywork and suspension claims distinct. Carbon aero components do not establish a roll-center correction, and a kit photograph does not supply the geometry needed to calculate one. Judge the chassis setup using appropriate measurements. Frequently Asked Questions Should the Rear Roll Center Be Higher Than the Front There is no universal requirement. Front and rear geometry, lateral load-transfer distribution, tire characteristics, and the intended balance must be considered together. Can a Roll Center Be Below Ground Yes, a geometric construction can place it below the road plane. That is a model result to interpret, not proof by itself that the car is unsafe or that a correction kit will improve it. Does Roll Center Affect Caster They are different parameters. A hardpoint change can affect both, but a roll-center height alone does not determine caster. Check the complete geometry after modifications. Is Roll Rate the Same as Roll Center No. A roll rate or stiffness calculation concerns resistance to roll, whereas roll-center analysis concerns suspension geometry or force response. Define the terms and units before comparing results. Technical Sources High Performance Academy Motorsport Wheel Alignment Roll Centre — introductory constructions and ride-height context. Claude Rouelle The No Way Transfer Part 2 — geometric and elastic load transfer, including model limitations. Tony Foale Spring into Action — instantaneous constructions and movement through suspension travel. RACE Software Roll Centre Height Force Based Suspension KPI — definition of its force-based reporting method.
