Automotive Air Curtains: How They Work and What Proves a Benefit

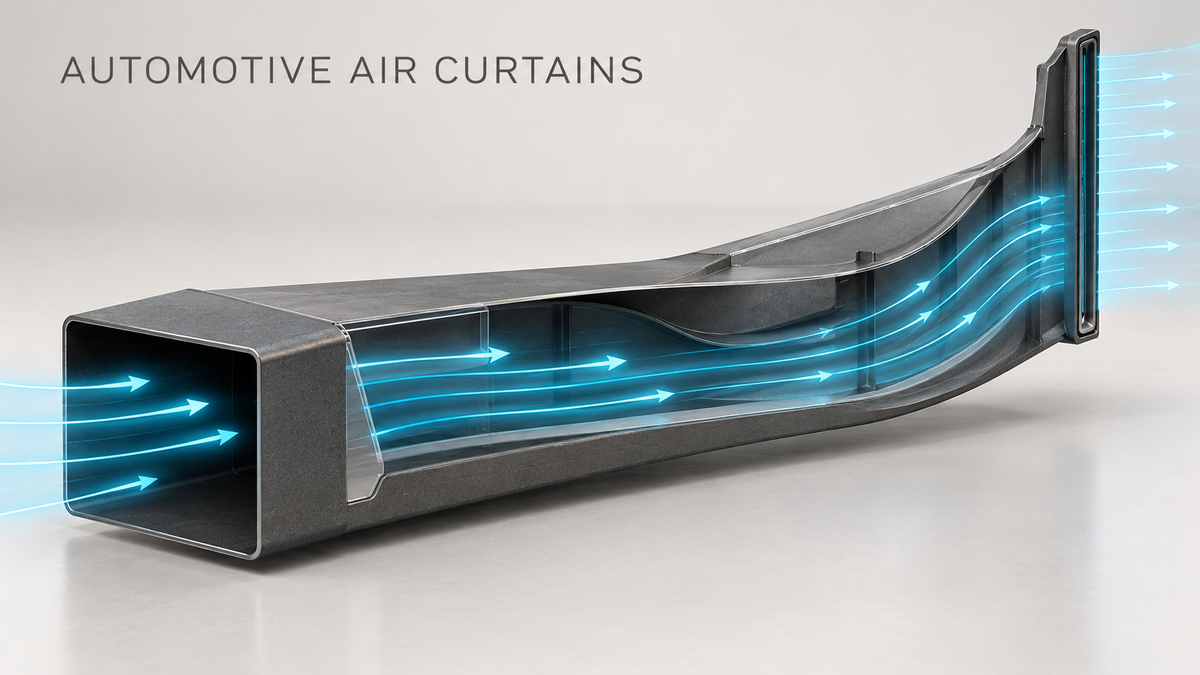

Automotive air curtains are airflow-control features that typically channel air from the front bumper through a duct and discharge it near the outside of a front wheel. Their purpose is to manage the disturbed flow around the wheel and help reduce aerodynamic drag. They are different from curtain airbags and the powered air curtains used over building entrances. A car air curtain is more than a visible slot. To assess a particular design, separate three questions: is there a complete airflow path, does it produce the intended flow, and has that configuration demonstrated a useful whole-vehicle result? Those questions become especially relevant when you change a bumper, add exterior trim or fit different wheels and tires. An opening proves less than a test, and an original factory result does not automatically apply to a modified car. How Do Front Air Curtains Work? The front wheel is a difficult aerodynamic neighborhood. The approaching flow interacts with the tire, rotating wheel and wheel opening rather than passing a simple, uninterrupted body surface. A ducted air curtain provides another way to organize that interaction. In a typical arrangement, an inlet near the bumper corner feeds an internal passage. A narrower outlet ahead of the wheel directs air along its outer side. The inlet pressure, passage shape, losses through the duct and conditions at the outlet all affect the discharge. A narrow outlet alone does not guarantee a useful jet. BMW’s official description of the Vision EfficientDynamics concept identifies closed ducts leading to slim outlets beside the front wheels. Its later media information also describes the air-curtain feature on the 2011 1 Series Coupe and Convertible. These are documented examples of a design approach, rather than a universal specification for every car. The “curtain” is moving air, not a solid seal. It does not make the wheel aerodynamically disappear, eliminate all turbulence or guarantee laminar flow down the side of the car. The useful question is whether the resulting flow improves the vehicle’s overall aerodynamic behavior. Air Curtains, Brake Ducts and Canards Do Different Jobs Several features can occupy the same bumper corner. Their location is therefore a weak guide to function. Trace the path and identify its intended target before deciding what the opening does. Feature Main intended job What to inspect Ducted air curtain Manage airflow near the wheel’s outer side Inlet, internal passage and wheel-side outlet Brake cooling duct Deliver cooling air toward the braking system Routing and delivery to the intended brake inlet or component Fender vent Provide an exit from a connected internal region Connection, pressure environment and exit location Canard or dive plane Influence aerodynamic forces and local flow through an external surface Surface shape, position, mounting and interaction with surrounding flow Neighboring bumper features can have different purposes. Exterior appearance alone does not reveal an internal air-curtain passage. A canard can influence the same wheel-area flow that an air curtain addresses, but that does not make the two devices interchangeable. Similarly, an opening that supplies a cooler is not automatically an air curtain because it sits near the tire. Our guide to front bumper side vents and fender vents covers the broader distinction; the canard guide explains those external surfaces in more detail. Three Levels of Evidence for an Air Curtain “Functional” can mean anything from an open passage to a measured improvement. Use a more specific description when comparing designs. Evidence of a connected duct answers a different question from evidence of lower vehicle drag. 1. Path: Does the inlet connect to the intended outlet? Inspect behind the visible trim using appropriate access or installation documentation. Identify the inlet, the passage walls and the exit. Check the exact model year and trim: a similar bumper face can conceal different equipment or blanking panels. A photograph looking into one opening cannot always show where the passage ends. Equally, a grille-like surface may conceal a real route that is difficult to see from outside. Document what is actually visible and leave uncertain sections unresolved until they can be checked. 2. Flow: Does air move as intended? A connected path establishes that air can pass through. It does not establish its flow rate, exit direction or interaction with the wheel. Those need analysis or observation under relevant conditions. Flow visualization can help identify direction or separation. CFD can help investigate pressure and velocity fields when the geometry, mesh, boundary conditions and method are suitable. Neither the presence of software nor a polished image establishes that the prediction is accurate. 3. Outcome: Does the complete vehicle improve? Compare the intended configuration against a clearly defined baseline. Whole-vehicle drag is one outcome; axle lift and cooling performance may also matter. A locally cleaner-looking flow can coexist with an unfavorable change elsewhere. Report the measured or predicted quantity rather than replacing it with a broad claim that the car is “more stable” or “more efficient.” How Effective Are Automotive Air Curtains at Reducing Drag? There is no defensible universal percentage for every vehicle, wheel package or aftermarket insert. The result belongs to the tested system. Without a relevant comparison, a seller’s claim should remain a design intention rather than an established saving. An exploratory study by Howell, Butcher and Passmore investigated air jets acting as wheel spoilers. It used externally supplied compressed air, a simplified body and fixed wheels and ground. That differs from a production car’s passive, wheel-side air curtain. The study illustrates why its reported behavior cannot simply be transferred to a road-car accessory. When reading a result, ask whether the comparison used the same vehicle geometry, tires and wheel positions. Check speed, cooling configuration, wheel rotation, ground simulation and airflow angle. Also check whether a small difference is distinguishable from the method’s repeatability or uncertainty. A meaningful comparison documents the test conditions as well as the vehicle geometry. These are conditions to check, not a claim about a completed test. Lower aerodynamic drag can contribute to efficiency, but a percentage reduction in drag is not the same as an equal percentage reduction in fuel consumption or an equal increase in EV range. The vehicle has other energy demands, and the operating cycle matters. Do not turn a component-level claim into a mileage promise without the missing vehicle-level evidence. What Changes When You Modify the Bumper, Wheels or Fenders? An air curtain is positioned relative to the surrounding body and wheel. Changing that environment creates a reason to reassess the design, even if the original duct remains open. It does not prove the change is harmful; it means the old result may no longer describe the new configuration. Start with the parts that physically meet the airflow path. An overlay can reduce an inlet’s exposed area. A replacement liner can change the exit. A gap at a duct joint can let air escape before it reaches the intended outlet. These are inspectable conditions, rather than conclusions drawn from the overall appearance of the kit. Next, record wheel and tire changes. Width, offset, spacers and tire shape can alter the wheel’s position relative to the outlet. A wider fender changes surrounding body geometry as well. There is no universal offset limit at which every air curtain stops working: the relevant clearance and flow field belong to that specific design. A position change is a reason to recheck the outlet-to-tire relationship. This comparison does not quantify its aerodynamic effect. Finally, consider the combination of changes. A new canard may alter the flow approaching an inlet or passing the outlet. A different wheel face changes another part of the wheel-area problem. Our aero wheel guide discusses wheel-face choices and their other requirements. Testing one part with the original wheels does not establish the result for every combination. A Practical Inspection Before and After Installation Use the original configuration as a documented reference. Photograph the inlet, accessible duct joints and outlet before fitting new parts. Keep track of the model, bumper version, liners and wheel-and-tire package. This makes a later obstruction or geometry change easier to identify. Confirm the route. Identify which opening actually supplies the air-curtain outlet, rather than assuming every corner opening has that role. Check continuity. Look for missing duct sections, displaced joints, debris or trim covering the intended passage. Check the installed geometry. Confirm the outlet remains where the design requires it and the assembly has suitable physical clearance through the required steering and suspension movement. Separate inspection from validation. Record that the path is intact. Claim a performance change only when a suitable comparison supports it. A visible inlet can conceal an obstruction. Inspecting continuity is useful even when no performance test is available. Do not remove a blanking panel merely because opening it looks more functional. First establish its purpose on the exact vehicle. A cooling opening, a trim-specific closure and an air-curtain passage are different possibilities. An incomplete understanding of the route is a reason to inspect further, not a reason to cut. Custom Air Curtains: What to Ask Before Buying or Building For a custom design, define the target before choosing a shape. Are you preserving a factory passage, replacing damaged ducting or developing a new aerodynamic feature? Those projects require different evidence. Restoring an original route is not the same task as proving an improvement over it. Ask for drawings or installation views that show the complete route and the required surrounding parts. Establish whether liners, internal ducts and mounting hardware are included. A vehicle-specific exterior insert may fit neatly while relying on internal pieces that are sold separately or retained from the original car. For a performance claim, request the tested configuration and comparison method. Useful documentation identifies what changed, what remained constant and which quantities were evaluated. A photograph, an unexplained CFD screenshot or the words “race inspired” answer much less. Custom development is possible, but copying an outlet’s appearance does not copy the pressure supply or downstream environment that made it work. Treat prototype flow checks and vehicle-level validation as part of development. There is no universal hole size, hose diameter or slot angle that can responsibly substitute for that process. Car Air Curtain FAQ What does “air curtain” mean in a car? In this context, it means an aerodynamic flow-control feature near the wheel. The term also appears in unrelated airbag and ventilation discussions, so check which system a source describes. Can a closed or fake vent have an aerodynamic effect? A closed surface cannot supply the through-flow of the ducted system described here. Its external shape can still affect airflow. Whether that effect is beneficial needs its own evidence; “not a duct” does not mean “no aerodynamic effect.” Do air curtains cool the brakes? Do not assume so. A wheel-side air-curtain outlet and a duct designed to deliver brake cooling air have different targets. Establish the actual routing before relying on either description. Should every aftermarket bumper include an air curtain? No. Evaluate the bumper’s intended use, surrounding systems and evidence. A convincing slot is not a requirement in itself. On a car with an existing factory route, check how the replacement accommodates that route. Technical Sources BMW Group, The BMW Vision EfficientDynamics Concept, American Market Version (2009), and BMW Model Year Refresh, March 2011, media information dated December 2010 — documented air-curtain design examples. Howell, Butcher and Passmore, An Exploratory Wind Tunnel Study of Air Jet Wheel Spoilers, Fluids 2023,8(12),322 — exploratory air-jet study and application limits. Wickern, Zwicker and Pfadenhauer, Rotating Wheels: Their Impact on Wind Tunnel Test Techniques and on Vehicle Drag Results, SAE970133 — published abstract on wheel simulation and configuration dependence.

Unsprung weight is the mass that moves with a wheel as the suspension responds to the road, rather than being carried above the suspension springs. On a conventional car, that includes the tire, wheel, hub, upright and wheel-mounted brakes. Reducing it can help the wheel assembly respond to uneven surfaces, but a lighter assembly does not automatically deliver more grip, better comfort or shorter stopping distances. The useful distinction is between three questions: how much mass moves with the wheel, how much inertia the rotating parts have, and whether the complete setup works better on your car. A lighter wheel can improve the first two while an unsuitable tire compromises the third. Before comparing upgrades, separate those questions and measure the complete assembly. What Counts as Unsprung Weight? Think about what happens when one tire crosses a small bump. The wheel and its attached components move relative to the body. The suspension spring and damper connect that moving assembly to the supported structure above it. Components on the wheel side contribute to unsprung mass; the body, cabin and most chassis-mounted equipment contribute to sprung mass. “Weight” is the familiar automotive term, although engineers normally model mass in kilograms. Neither category is a judgment about whether a component is useful. A brake caliper has an essential job even though its mass moves with the wheel. Some parts sit between the two categories. Suspension links, halfshafts, springs and dampers do not necessarily move as rigid units with either the body or the wheel. Their effective contribution depends on geometry, mass distribution and the model being used. Assigning exactly half of every such component to unsprung mass is a rough convention, not a universal measurement rule. Inboard brakes and unusual drivetrain layouts also change the accounting. Sprung, Unsprung and Rotating Mass Are Different Categories Unsprung mass describes suspension motion. Rotational inertia describes resistance to changing angular speed. A component can belong to both categories, just one, or neither. For a conventional arrangement: Component Suspension category Rotating component? Tire and wheel Unsprung Yes Wheel-mounted brake disc Unsprung Yes Wheel-mounted fixed caliper Unsprung No Body panel Sprung No Flywheel in a chassis-mounted engine Sprung Yes, at engine speed A wheel and a wheel-mounted caliper both contribute to unsprung mass, but only the wheel rotates around the axle. This distinction matters when evaluating lightweight modifications. A lighter body panel can reduce vehicle mass without reducing unsprung mass. A lighter caliper reduces unsprung mass without removing wheel-speed rotational inertia. Neither saving should be presented as interchangeable with removing the same mass from a tire tread. How Does Unsprung Weight Affect Performance? A road disturbance has to accelerate the wheel assembly vertically. Its mass, the tire’s stiffness and the suspension’s spring and damping forces determine that response together. Lower unsprung mass changes the dynamics and can help control tire-load variation on uneven surfaces. The benefit depends on the disturbance and the rest of the setup. A useful starting point is the two-mass quarter-car model documented by SINTEF. It separates the supported body mass from the wheel-side mass, connects them through a suspension spring and damper, and represents the tire with another spring. This makes clear why wheel mass cannot be judged independently of tire stiffness and suspension tuning. The two-mass model separates body motion from wheel motion. It is a simplified explanation, not a prediction of a particular car’s grip. Comfort and road holding also measure different things. Body acceleration matters to occupants; variation in tire force matters to contact with the road. Improving one response at one disturbance frequency does not establish an improvement everywhere. Tire construction, inflation pressure, spring rates and damping can change the result. Less visible body movement is not proof of more grip, either. Our guide to weight transfer in cars explains another part of that distinction. For wheel upgrades, assess the tire and suspension as a system instead of treating wheel weight as a standalone handling score. Does One Pound of Unsprung Weight Equal Seven or Ten Pounds? There is no universal conversion. Claims that one pound of unsprung weight “equals” several pounds elsewhere combine different effects into a number without specifying what is being compared. Acceleration energy, vertical wheel motion, ride comfort and lap time are different outcomes. For vertical suspension response, location and the suspension model matter. For accelerating a rotating wheel, both its mass and the distribution of that mass matter. For a timed driving result, tires, power, gearing, surface and driver introduce additional variables. One fixed multiplier cannot describe all three. A more useful question is: equal in which calculation, under which assumptions? If those details are missing, compare the actual mass saving first and leave the claimed equivalent out of the purchasing decision. Why the Location of Wheel Mass Matters Rotational inertia depends on distance from the rotation axis. Moving a given amount of mass farther outward increases its contribution to inertia. Two assemblies with the same scale weight can therefore require different amounts of energy to reach the same wheel speed. Equal added mass at different radii produces different rotational inertia. These conceptual disks do not represent measured wheel designs. OpenStax’s explanation of rolling motion separates translational energy from rotational energy. For an ideal assembly rolling without slipping, a useful comparison is: E = ½mv² + ½Iω², with ω = v/R. Here, m is mass, I is rotational inertia about the axle, v is road speed and R is rolling radius. At the same rolling radius and speed, the kinetic-energy saving from a lighter assembly can be expressed as an equivalent translating mass: Equivalent mass saving = Δm + ΔI/R². For a hypothetical one-corner change, suppose mass falls by 1.00 kg, inertia falls by 0.040 kg·m², and rolling radius stays at 0.32 m. The rotational term is 0.040 ÷ 0.32², or about 0.39 kg. The total energy-equivalent saving is about 1.39 kg. The physical mass saving is still 1.00 kg. This is an illustrative calculation, not a new fixed multiplier. It does not predict comfort, wheel hop, braking distance or lap time. It also does not transfer directly to an engine flywheel rotating through gearing. If only assembly weight is available, report that saving; do not invent an inertia value to produce a more impressive equivalent. How to Calculate Unsprung Weight Reduction When only the wheel-and-tire package changes, you can measure that change without determining the car’s entire unsprung mass. Compare equivalent complete assemblies, using the same scale and a consistent weighing method. Tare the scale with any cradle or support in place. Once the assembly is secure, remove hand contact and wait for a stable reading. Record the original assembly. Include the wheel, tire, valve or TPMS hardware, and balance weights. Measure the replacement on the same basis. Avoid comparing a bare replacement wheel with a fully assembled original. Subtract replacement mass from original mass. Keep front and rear measurements separate on a staggered setup. Add the actual savings across all four corners. Label the result as assembly mass reduction, not an estimated horsepower gain. Position the assembly securely, tare any support, and release hand contact before reading the scale. A lighter rim can be partly offset by a heavier tire. For example, a replacement wheel that saves 2 kg paired with a tire that adds 1 kg yields a net saving of 1 kg at that corner. If all four changes are identical, the total is 4 kg. That simple subtraction is more useful than advertising the rim’s saving while overlooking the tire. If brakes, hubs or suspension parts also change, record each change separately and identify how the component moves. Corner scales measure the load supported at each tire; they do not independently separate sprung from unsprung mass. A full unsprung-mass estimate needs component measurements and a clearly stated treatment of parts that move between body and wheel. How to Reduce Unsprung Weight Without Losing Capability Begin with fitment and function. Wheel diameter, width, offset, load capacity, brake clearance and tire compatibility must suit the car and its use. Our wheel specification guide for track driving provides a useful framework before comparing weight. Construction method is another input, not the complete answer. A forged wheel may offer a useful strength-to-mass solution, but the actual design, dimensions, load requirements and validation still matter. Compare compatible finished specifications rather than assuming every forged wheel is lighter than every cast alternative. See our forged versus cast wheel guide for that broader comparison. Brake changes need particular care. A lighter disc may reduce rotating and unsprung mass, but removing material from the friction ring can also reduce its capacity to absorb heat. A different rotor construction may manage that tradeoff differently. Check the braking system’s thermal requirements and compatibility rather than treating the lightest disc as the best option. Brake mass has a thermal job as well as a dynamic cost. Evaluate the complete braking system before chasing a lower weight. The same reasoning applies to tires: construction, dimensions and load capability matter alongside mass. A lighter package that sacrifices the required tire characteristics is not automatically an upgrade. Record the function you need first, then look for a compatible reduction. How Much Unsprung Weight Makes a Difference? There is no reliable universal threshold in pounds or kilograms that every driver will feel. The size of the original assembly, percentage change, road inputs, tires and suspension all affect the response. A measurable scale difference establishes a mass change; it does not establish a perceptible or worthwhile performance improvement. For a useful comparison, keep tire model and condition, pressures, alignment, loading and test conditions as consistent as possible. Record any unavoidable differences. A different tire compound or size can dominate the impression attributed to a lighter wheel. If you need performance evidence, define the outcome before testing: ride response on a repeatable surface, tire-load behavior with suitable instrumentation, or consistent timed results in a controlled environment. Report the conditions and uncertainty. Without that evidence, the honest conclusion is a documented mass reduction with potential dynamic benefits, rather than a guaranteed performance gain. Unsprung Weight FAQ Is unsprung weight bad? It is an unavoidable part of supporting, steering and braking the car. Reducing unnecessary mass can be useful, but the components still need adequate strength, durability and operating capacity. Do lighter wheels improve braking? They can reduce the energy associated with accelerating and decelerating the rotating assembly. That alone does not establish a shorter stopping distance: tire grip, road conditions, braking-system behavior and the complete vehicle determine the result. Can an unsprung weight calculator give an exact performance gain? A calculator can total measured component changes. An energy calculation also needs inertia and rolling radius. Neither calculation alone determines grip, comfort or elapsed time. Does carbon bodywork reduce unsprung weight? Bodywork attached to the supported structure normally contributes to sprung mass. A lighter body panel can reduce overall mass, but that saving should not be counted as a wheel-side reduction. Technical Sources OpenStax, University Physics Volume 1: Rolling Motion — rolling kinematics and translational plus rotational energy. OpenStax: Moment of Inertia and Rotational Kinetic Energy — mass distribution about an axis. SINTEF, Quarter-Car Model — simplified two-mass suspension model and its assumptions. Baer / Holley, “Rotational & Unsprung Weight: How Less Mass Improves Performance” — component distinctions and the thermal tradeoff of lighter brake discs. Its weight-multiplier rule is not used as a calculation method here.

A vehicle roll center is a virtual reference derived from suspension geometry, used to analyze lateral force transmission and body roll. It is not the center of gravity, a physical hinge, or a measurement of how far the body leans. Front and rear suspension geometry are considered separately, and their roll-center positions can change as the suspension moves. For a lowered road or track car, the useful question is whether the revised geometry helps the tires work consistently. A lower body, a higher roll center, or less visible lean does not prove that grip improved. Understanding the construction, its limitations, and the surrounding setup makes the number useful. Roll Center vs Body Roll and Center of Gravity Body roll is the vehicle body's angular movement relative to the road during cornering. Roll center describes a geometric reference associated with the suspension. They answer different questions: one describes motion; the other helps explain how the suspension carries loads. The center of gravity, or CG, describes mass distribution. The instant center, or IC, describes the instantaneous motion of a suspension assembly in a particular view. In a conventional front-view construction, each side's instant center helps locate the axle's geometric roll center. It is an intermediate construction point, not another name for the final result. Term What it describes Common mistake Center of gravity A reference for the vehicle's mass distribution Treating it as the suspension's geometric pivot Instant center Instantaneous suspension motion in the chosen analysis plane Calling the control-arm intersection the roll center Roll center A suspension reference obtained from the chosen model Treating it as a fixed physical hinge Roll axis The reference line joining front and rear roll centers Assuming it must be horizontal The front and rear values need not match. Also, a diagram of the roll axis is a model, not proof that the real sprung body follows that line as a rigid rotation axis in every maneuver. Compliance, tire deflection, and suspension motion complicate the actual response. How to Find Roll Center from Suspension Geometry A useful measurement starts with a defined vehicle condition. Record the intended working ride height, tire condition, steering position, and loading. Use a level reference plane and a consistent coordinate system. A number calculated with the wheels hanging free is not automatically relevant to the car sitting on its tires. Identify the actual pivot centers, rather than measuring to a convenient bolt head or body-panel edge. Record tire contact-patch locations and the relevant suspension hardpoints. Keep left and right measurements separate until symmetry has been established. For three-dimensional layouts, obtain the correct projected or equivalent geometry instead of tracing the visible outline of a control arm. The following methods describe simplified front-view constructions. They explain the logic behind a roll center diagram; they are not substitute workshop instructions for modifying suspension components. High Performance Academy's roll-center lesson demonstrates the distinction between locating an instant center and constructing a roll center. Double Wishbone Suspension In a suitable planar representation, extend the upper and lower arm lines until they intersect. That intersection is the instant center for that side. Draw a line between the instant center and the center of the tire contact patch. Repeat the construction on the other side. This single-side construction locates IC. The contact-patch line is then combined with the opposite side's construction to locate the axle's geometric roll center. The intersection of the two contact-patch-to-IC lines gives the geometric roll center. In a symmetric static arrangement it lies on the vehicle centerline. Do not force that centerline assumption onto an asymmetric or displaced suspension condition. Nearly parallel construction lines also make the intersection sensitive to small measurement errors. MacPherson Strut Suspension A MacPherson strut has no upper wishbone to extend. In the simplified front-view construction, use the lower-arm line and a line through the upper strut mount perpendicular to the strut axis. Their intersection locates the instant center. Connect that point to the tire contact patch and repeat for the other side. This idealized vertical-strut example makes the perpendicular construction clear: the upper line is horizontal. IC is the instant center; CP is the contact point. For an inclined strut, the upper line must change angle to remain perpendicular. Use the actual kinematic layout. A split lower-link arrangement, unusual steering-axis geometry, or substantial compliance can require a more complete model. A familiar-looking strut does not make every simplified sketch equally accurate. Solid Axles and Other Rear Suspension Layouts Do not use the double-wishbone method simply because the rear suspension has several links. A rigid axle's lateral locating arrangement needs to be understood first. A torsion or twist beam introduces structural behavior that differs from a rigid axle. Multi-link independent systems can require three-dimensional kinematic analysis. For those layouts, identify the suspension architecture and use a model or manufacturer information appropriate to it. The word “beam” alone does not tell you which construction to use, and wheel-center height is not a universal answer. How Ride Height Changes the Roll Center Question Lowering a car changes the relationship between body-side suspension pivots and the wheels. The center of gravity may move down, but the roll center follows the geometry rather than moving down by the same amount. The outcome depends on the layout and its operating position. This is why “lower CG means less body roll” is an incomplete prediction after a suspension change. If the geometric roll reference changes unfavorably, the benefit of a lower CG can be offset. New springs or anti-roll bars may also change the measured roll response, making it difficult to attribute the result to geometry alone. A repeatable ride-height reference helps define the vehicle's working condition. It does not reveal the roll-center height without suspension geometry data. Our coilover track setup guide explains how to establish a baseline and test changes methodically. Record the mechanical setup before interpreting any new geometric result. Available compression and rebound travel also matter. A car that reaches its bump stops earlier may behave differently even if a static roll-center calculation looks acceptable. Check alignment, tire and body clearance, and the usable suspension range alongside ride height. Low vs High Roll Center and the Grip Tradeoff In a simplified steady-state model, raising the roll center toward the sprung-mass CG reduces the roll moment carried through elastic suspension elements. At the same time, it increases the geometric share of lateral load transfer. Lowering it changes that division in the other direction. Claude Rouelle's load-transfer analysis makes the important distinction: reducing the elastic contribution does not make total load transfer disappear. In its simplified two-dimensional example, total transfer remains governed by mass, lateral acceleration, CG height, and track width while the transfer paths change. That model explains why a flatter-looking car is insufficient evidence of more grip. A complete car adds front-to-rear load sharing, tire behavior, compliance, and transient response. There is no universal “best” front and rear roll-center height that follows from appearance alone. Higher roll-center geometry can also introduce jacking, a tendency for suspension forces to lift the sprung body. Its significance depends on the layout and operating condition, adding another reason not to maximize roll-center height in isolation. Read our weight transfer guide for the underlying distinction between vehicle motion and tire loading. If a setup changes handling balance, describe the actual entry, midcorner, or exit behavior before diagnosing the cause. Why One Static Number Is Not Enough The control arms do not hold the same angles throughout compression, rebound, and roll. Their instant centers move, and the geometric roll center can move vertically and laterally. Tony Foale's suspension geometry explanation describes why the construction applies to an instantaneous position. A useful comparison therefore follows the geometry through the travel range the car actually uses. Check for abrupt movement, sensitivity to small hardpoint changes, and asymmetry between relevant conditions. A seemingly attractive static value may conceal behavior elsewhere in the operating range. Spring and damper hardware influences the response, but it does not replace the hardpoint geometry needed to locate a roll center. Keep roll stiffness separate from roll-center location. Roll stiffness describes resistance to roll; the roll center is a geometric or force-based reference. Changing a spring rate does not, by itself, move the rigid hardpoints at an identical imposed suspension position. It can change the equilibrium position the car reaches under load, which then changes the geometry being evaluated. What a Vehicle Roll Center Calculator Can Tell You A calculator can make a specified construction repeatable. It cannot recover missing hardpoints from a photo of a lowered car. Before trusting its output, check the following: Definition: Does it report a kinematic construction or a force-based result? Inputs: Are coordinates, units, contact patches, and projection conventions correct? Condition: Does the model represent the chosen ride height, steering position, and loading? Scope: Does it model the actual suspension architecture and account for any relevant compliance? Sensitivity: Do small input changes produce a large change in the result? RACE Software's Roll Centre Height Force Based Suspension KPI describes a method using lateral contact-patch force and the resulting force response. That is a reason to check definitions before comparing numbers from different tools. Its overview does not establish an accuracy guarantee for another calculator. If measurements are incomplete, report the missing inputs instead of presenting a guessed millimeter value. Likewise, do not compare two diagrams built at different wheel travel positions and call the difference a confirmed improvement. What to Check After a Ride Height Change Start with the mechanical condition and the revised geometry. Have qualified personnel check alignment, clearances, travel, and the suitability of any changed components. Do not choose ball-joint extensions or relocate mounting points from a generic internet diagram. For controlled track evaluation, compare the same driver, tires, loading, and representative conditions. Record the setup, describe the handling phase that changed, and compare repeatable observations rather than one fast lap or a photo of reduced lean. Combine geometry information with a repeatable setup record. The vehicle's exterior appearance cannot establish its hidden suspension coordinates or performance result. Our understeer vs oversteer guide helps separate the observed handling response from a proposed explanation. Persistent instability needs diagnosis; it is not an instruction to keep raising or lowering one roll center. For a REVOZPORT build, keep bodywork and suspension claims distinct. Carbon aero components do not establish a roll-center correction, and a kit photograph does not supply the geometry needed to calculate one. Judge the chassis setup using appropriate measurements. Frequently Asked Questions Should the Rear Roll Center Be Higher Than the Front There is no universal requirement. Front and rear geometry, lateral load-transfer distribution, tire characteristics, and the intended balance must be considered together. Can a Roll Center Be Below Ground Yes, a geometric construction can place it below the road plane. That is a model result to interpret, not proof by itself that the car is unsafe or that a correction kit will improve it. Does Roll Center Affect Caster They are different parameters. A hardpoint change can affect both, but a roll-center height alone does not determine caster. Check the complete geometry after modifications. Is Roll Rate the Same as Roll Center No. A roll rate or stiffness calculation concerns resistance to roll, whereas roll-center analysis concerns suspension geometry or force response. Define the terms and units before comparing results. Technical Sources High Performance Academy Motorsport Wheel Alignment Roll Centre — introductory constructions and ride-height context. Claude Rouelle The No Way Transfer Part 2 — geometric and elastic load transfer, including model limitations. Tony Foale Spring into Action — instantaneous constructions and movement through suspension travel. RACE Software Roll Centre Height Force Based Suspension KPI — definition of its force-based reporting method.

VELOIRE introduces a ZEEKR 9X exterior programme developed with REVOZPORT as its design and engineering partner. The programme is independent from ZEEKR. Prepreg dry carbon is carbon-fiber reinforcement pre-impregnated with resin before it is cured into a component. The ZEEKR 9X carbon fiber body kit offers an exterior upgrade for buyers seeking a coordinated change to their vehicle. Its parts follow the SUV from the front through the sides to the rear, keeping its existing shape and lighting identity in view. The programme changes the exterior design, not the vehicle’s stated performance. Parts can combine visible finished sections with sections supplied in white primer for painting. That distinction helps buyers plan a finish that suits the vehicle and the look they want. The design goal is a more deliberate visual line, not a collection of unrelated carbon accents. Key Takeaways VELOIRE is the programme brand; REVOZPORT is its design and engineering partner. The programme is independent from ZEEKR. It uses prepreg dry carbon for selected exterior components. Some parts have clear-coated carbon, while others arrive in white primer. Buyers should confirm fitment for their exact vehicle and market. What Makes the ZEEKR 9X Carbon Fiber Body Kit a Cohesive Transformation? The European-specification ZEEKR 9X’s long wheelbase and upright proportions give the exterior programme a substantial form to work with. A cohesive body kit for the ZEEKR 9X follows those proportions rather than adding single features without a shared design. The vehicle’s stated dimensions and market specification provide useful context, but exterior parts do not add power or capability. European-specification details describe a plug-in hybrid with all-wheel drive, a 2.0-liter turbocharged inline-four petrol engine, and front and rear electric motors. Its stated output is 660 kW / 897 HP, with a gross battery capacity of 55 kWh and a kerb weight of 2,900 kg. These are European-specification figures, not universal specifications for every market. The upright silhouette and distinctive lighting signature set clear design limits. The body measures 5,239 mm long, 2,029 mm wide excluding mirrors, and 1,819 mm high. Its 3,169 mm wheelbase helps explain why a front-to-rear treatment matters on a vehicle of this scale. Length: 5,239 mm Width, excluding mirrors: 2,029 mm Height: 1,819 mm Wheelbase: 3,169 mm The European specification also lists 22-inch alloy wheels with 285 / 45 R22 tires. Front double-wishbone and rear multi-link suspension work with dual-chamber air suspension and dual-valve CDC. These details describe the vehicle’s existing setup; they do not show that exterior changes improve handling or performance. REVOZPORT’s work on other vehicles offers context for its design role, including a CFD carbon-fiber programme for the BMW G87 M2. That product concerns a different vehicle and does not establish ZEEKR 9X performance claims. A separate BMW M5 exterior programme also shows the partner’s use of linked front, side, and rear parts. For this SUV, the shape and lighting call for a measured conversion rather than a change that competes with its original design. Keep the visual brief centered on proportion and continuity rather than claims of added power or capability. Which Components Shape the Front-to-Rear Transformation? The 11-part programme combines replacement panels with carefully placed add-ons rather than relying on one oversized feature. Replacement pieces take the place of selected factory exterior parts, while add-ons attach to existing areas. The mix creates a linked front-to-rear treatment without suggesting a change to the vehicle’s exhaust system. Several parts have clear-coated carbon that remains visible, while other sections arrive in white primer. The latter need body-color paint; white primer does not mean the parts arrive painted to match. Bonnet, bumper and front splitter The replacement front bonnet uses visible prepreg dry carbon under a clear coat. Its carbon surface is a finished, exposed section, not a paint-ready panel. Buyers choosing the visible finish can keep the weave on display. The replacement front bumper combines clear-coated visible carbon sections with paint-match sections supplied in white primer. Those primer areas need body-color paint to blend with the vehicle. The add-on front lip, also called a splitter, uses clear-coated visible prepreg dry carbon. Together, the bonnet, bumper, and lip give the front end more than one point of visual focus. The replacement bumper and bonnet change existing panels; the lip adds a separate piece below the bumper. Fender extensions, side skirts and mirror covers Replacement wide-body fender and wheel-arch extensions arrive in white primer for body-color painting. They extend the side treatment around the wheel openings. Their finish should be planned with the body color, not treated as exposed carbon. Replacement side-skirt extensions also arrive in white primer for body-color painting. They continue the lower line between the front and rear wheels. Add-on mirror covers provide a smaller visible-carbon detail, finished with a clear coat. The contrast between paint-ready extensions and visible carbon covers lets buyers balance a blended side profile with selected exposed-carbon areas. These pieces are replacements or additions as specified; they do not change the vehicle’s underlying body or chassis. Rear diffuser, glass trim and spoilers The replacement rear diffuser has clear-coated visible carbon and integrated carbon exhaust finishers. The finishers are visual details; they do not replace or alter the exhaust system. The diffuser replaces the existing rear part rather than adding a new exhaust outlet system. Add-on rear window and C-pillar trim panels use clear-coated visible prepreg dry carbon. The add-on roof spoiler has the same visible finish. The mid spoiler also uses clear-coated carbon and mounts below the rear window. The replacement tailgate trim panel is clear-coated visible prepreg dry carbon. It changes the trim, not the rear lamps. A guide to replacement and add-on exterior parts gives general context for how different panel types can form a coordinated look. The rear pieces carry the carbon treatment across the tailgate, glass area, and lower bumper, balancing the front and side details. A broader REVOZPORT dry-carbon programme on the BMW XM offers another example of a linked exterior approach, though its parts are for a different vehicle. The white-primer fender and side-skirt pieces need body-color painting to complete the intended blend. Which Carbon Finishes and Forged Wheels Can You Choose? Gloss twill is the included finish, while matte twill and forged carbon each add 10%. The three options change the visible carbon pattern and clear coat, not the part selection. VELOIRE forged wheels are optional and priced separately from the complete body kit. These finishes use prepreg dry carbon, also described in some listings as dry carbon fibre. Custom colors and alternative weaves are available on request. Ask about those choices when setting the desired finish for the exposed sections. Three carbon finish options Finish Weave or pattern Clear coat Price adjustment Gloss twill Classic diagonal weave High-gloss Included as standard Matte twill Diagonal weave Low-glare matte 10% extra Forged carbon Distinctive forged-carbon pattern Gloss 10% extra Gloss twill keeps the familiar diagonal weave visible under a high-gloss finish. Matte twill retains a diagonal pattern with less glare. Forged carbon has a different, irregular pattern and a gloss clear coat. Vehicle-specific forged wheel sets VELOIRE offers vehicle-specific forged wheels in 23-inch or 24-inch sets. Those sizes are optional alternatives to the European-specification ZEEKR 9X’s 22-inch alloy wheels. The wheel sets are not included in the body kit price. Wheel size alone does not settle whether a set suits a particular vehicle. The fit check covers the wheel, tire, and brake clearance before a quotation. A VELOIRE programme overview also outlines the available wheel sizes and finish choices. Buyers can ask for a quotation for either forged-wheel size once their preferred setup is clear. Confirm wheel, tire and brake clearance before settling on a wheel size. What Does the Complete Kit Cost, and Which Charges Are Separate? The complete VELOIRE 11-component body kit is listed at USD $27,615. That product total excludes optional forged wheels, shipping, duties, taxes, and installation. Each of those costs is handled separately from the kit price. For a clear project budget, separate the kit itself from the other costs that may apply. The wheel price is not part of the product total, and the remaining charges receive separate quotations. The figures below describe how each item relates to USD $27,615. Purchase item Listed price treatment Relationship to USD $27,615 Complete 11-component kit USD $27,615 Product total Optional forged wheels Priced separately Not included Shipping Quoted separately Outside product total Duties, taxes, and installation Quoted separately Outside product total Shipping, duties, taxes, and installation can affect the full project budget, so the listed kit price is not a delivered or installed total. The body kit Zeekr 9X buyers compare may also come from other aftermarket programmes, with different parts and styling goals. MANSORY’s separate ZEEKR 9X project is one market alternative. DuPont Registry’s report on its one-off build describes a carbon-fiber body kit, two-tone paint, coach-style rear doors, and custom 24-inch wheels. Forza Performance offers another example of a carbon-fiber kit offering; these are alternatives, not endorsements or rankings. Buyers weighing a kit can also use a carbon-fiber body kit buying guide to consider material, fitment, and installation as separate choices. Compare the product total with the separately quoted charges before confirming a full project budget. How Is Fitment Confirmed Before Production? A ZEEKR 9X model name alone is not enough to finalize fitment; the vehicle’s specification and details must be checked. VELOIRE is designed for ZEEKR 9X Max, Ultra, and Hyper models, along with regional derivatives. Final fitment approval requires the VIN and exterior photographs of the front, rear, left side, and right side. Before production, REVOZPORT checks the VIN, market specification, cameras, sensors, and exterior views. This review helps confirm how the selected parts relate to the specific vehicle. A model name or one market’s specification does not guarantee fitment across every regional version. Preparation matters because exterior parts sit near features such as cameras and sensors. Buyers should identify their exact vehicle and share the required views before production approval. A general carbon-fiber installation guide can help explain test fitting and alignment, though its procedures cover a different vehicle. Vehicle and market verification The review begins with the VIN and the vehicle’s market specification. REVOZPORT also checks the camera and sensor layout, then compares it with the exterior photographs. These steps help distinguish vehicles that share a model name but have different regional details. Send clear exterior photographs showing the front, rear, left side, and right side. The VIN and all four views are needed for final fitment approval. A vehicle-specific fitment guide can explain why exact versions matter, but it does not replace the ZEEKR 9X review. Installation and buyer preparation Professional installation is recommended, not stated as a requirement. Large replacement panels and add-on pieces call for careful handling and alignment. The programme does not state that professional installation is required, but buyers should plan who will fit the parts. Prepare the request in five steps: Identify the ZEEKR 9X model and market. Choose the components. Select a carbon finish. Decide whether to request a 23-inch or 24-inch wheel quotation. Prepare the VIN and four exterior photographs for final approval. Share the details before production so the vehicle-specific review can take place. Arrange a professional installer before the parts are ready to fit. Conclusion VELOIRE’s defining choice is a coordinated exterior treatment, with the final specification tailored to the vehicle. REVOZPORT is the programme’s design and engineering partner, and the project remains independent from ZEEKR. Buyers can shape their request around the selected parts, finish, and wheel choice. Base a specification request on the exact vehicle and market, not the model name alone. Compare the kit price with separately quoted project costs, then prepare the details needed for approval. Prepare the VIN and four required exterior views before requesting final fitment approval. FAQ How much will the ZEEKR 9X cost? The VELOIRE body kit costs USD $27,615, not the ZEEKR 9X vehicle itself. That price covers the complete 11-component kit. Optional forged wheels are priced separately, and shipping, duties, taxes, and installation receive separate quotations. The SUV’s purchase price is a different cost from this exterior upgrade. What is a carbon fiber body kit? A carbon fiber body kit is a group of replacement and add-on exterior parts made with carbon-fiber material. VELOIRE’s programme pairs replacement panels, such as the bonnet and rear diffuser, with add-ons such as the front splitter and spoilers. Some visible sections have clear-coated carbon, while white-primer sections need body-color paint. What is the best body kit? VELOIRE may suit buyers who want a coordinated 11-component front-to-rear design and vehicle-specific fitment checks. That recommendation depends on the buyer’s goals, chosen parts, and vehicle details. It is not an objective ranking of every kit. Buyers should compare the design, finish choices, fitment process, and separate project costs against their needs. Who are the top body kit manufacturers? For this project, VELOIRE is the brand and REVOZPORT is its design and engineering partner. MANSORY and Forza Performance are other examples in the ZEEKR 9X aftermarket. They are market alternatives, not a ranked list of manufacturers. Their programmes can differ in design, parts, and scope, so buyers should compare the details that matter to them. What is the best website for buying body kits? For the VELOIRE programme, use its programme page and specification-request process. This gives buyers a direct way to describe their vehicle, component choices, and desired finish. Fitment review depends on the VIN, market specification, cameras, sensors, and exterior views. A general website ranking would not show whether a specific kit suits a specific vehicle.

Trail braking is the gradual release of brake pressure while steering into a corner. The main slowdown starts on the straight; as cornering demand builds, braking demand usually needs to fall. Done well, this transition can help manage corner-entry balance and prepare the car for a clean exit. It does not mean carrying heavy braking into every turn. This guide explains the trail braking technique for cars on a closed course, with qualified instruction. The useful question is how the car responds as you release the pedal. A later braking point or a longer brake trace is not automatically an improvement. What Is Trail Braking in a Car Imagine approaching a right-hand corner after a straight. You first reduce speed with the car largely straight. As you start turning, you progressively ease off the brake instead of releasing it all at once. That overlap between declining brake pressure and increasing steering is trail braking. Coaches sometimes use the term differently. Some include almost any controlled brake release after turn-in; others reserve it for carrying light braking farther into the entry. Neither description creates a universal release point. What matters is whether the overlap suits the corner and keeps the car predictable. It also differs from simply braking too late. If the entry speed already demands more grip than the tires can provide, holding the brake into the turn will not create the missing capacity. Learn a consistent straight-line approach before adding overlap. How Tire Grip and Load Transfer Shape the Release A tire has a limited capacity to generate braking and cornering forces together. The friction circle is a useful teaching model: asking for more lateral force leaves less room for longitudinal braking force. Real tires and changing surfaces are more complicated than a perfect circle, but the practical relationship remains useful. The red and blue arrows represent longitudinal and lateral demand. They are not measured force values. This is why turning the wheel farther while maintaining the same heavy brake input can overwhelm the front tires. Additional steering is not a substitute for available grip. The Northeast Region Porsche Club of America explains this relationship in its driving terminology guide. Braking also shifts vertical load toward the front axle and away from the rear. This changes the balance between the axles; it does not increase every tire's grip equally. For the underlying mechanism, see our guide to weight transfer in cars. Keeping some braking into turn-in can influence rotation. Too much can leave the front tires overloaded by combined demands or make the rear less stable. The release must respond to both effects. Smoothness means controlling how the load changes, rather than making every pedal movement slow. Under braking, vertical load increases at the front and decreases at the rear. Arrow sizes are conceptual, not a load distribution measurement. Trail Braking vs Threshold Braking and Straight Line Braking These terms describe different aspects of braking. Threshold braking concerns how close braking gets to the available tire-grip limit. Straight-line braking describes the car's direction. Trail braking describes the release and its overlap with turning. Technique Main purpose Relationship to steering Straight-line braking Reduce speed before turning Main braking takes place with the car largely straight Threshold braking Use braking grip near its limit while retaining control Usually taught first on the straight; the limit changes with conditions Trail braking Blend brake release into corner entry Braking demand generally falls as cornering demand increases A driver can use strong straight-line braking, potentially near threshold, then trail off during turn-in. A beginner does not need to reach the limit to learn a controlled release. Equally, finishing braking before turning can be the appropriate approach when it provides a stable, repeatable line. How to Practice the Trail Braking Technique on Track Work with an instructor at an organized track event. The sequence below is a framework for discussion and coached practice, not a pressure prescription. Keep the vehicle's normal safety systems in the configuration recommended by its manufacturer and the event instructor. 1 Establish a Repeatable Approach Choose a suitable corner with your instructor. Use an identifiable braking reference and a conservative entry speed. Establish your intended line and complete the main slowdown before adding significant steering. If the braking point, speed, and line change every lap, it becomes difficult to judge the effect of release. 2 Blend the Release Into Turn In As the steering input builds, reduce brake pressure progressively. Avoid stepping off the pedal or holding a large brake input simply because you have begun the exercise. Your instructor should help you connect pedal movement with the car's direction and stability. The approach, turn-in, and later entry form one continuous transition. These positions do not mark fixed braking or release points. 3 Adapt to the Corner and the Car Do not aim for a universal remaining brake percentage. Pedal travel, measured hydraulic pressure, and a simulator's normalized brake input are different signals. A value copied from another car may describe a different braking force altogether. Likewise, the apex is not a mandatory deadline. Depending on the line and available grip, braking may finish earlier or extend farther into the entry. Toyota GAZOO Racing's Episode 3 Trail Braking illustrates one teaching approach; its timing and proportions should not become rules for every vehicle. 4 Prepare a Controlled Transition to Throttle Release the brake as the car reaches the balance and direction needed for the next phase. Add throttle progressively when the car and line are ready. If a more aggressive entry leaves you correcting the steering or waiting longer to accelerate, the apparent entry gain may cost time down the following straight. After the lap, discuss one observation before changing another input. Was the entry line more consistent? Did the rear remain settled? Could you start unwinding the steering without a correction? These questions are more useful than trying to maximize how long the brake stays on. When to Use Trail Braking and When to Simplify Slow, tight corners can provide a reason to explore controlled entry rotation. Toyota's track guidance identifies slower bends as a useful application. That does not mean every hairpin needs deep trail braking: the approach, surface, car balance, and exit still decide whether it helps. A tight hairpin and a broad sweeper present different entry tasks. Corner shape alone does not determine a safe speed or brake release. For an unfamiliar fast corner, a wet or uneven surface, or a rear end that already feels unstable, simplify the entry and seek instruction. Combining more demands under those conditions leaves less room for mistakes. Do not force brake overlap to match a video of a different car. On cars with meaningful aerodynamic downforce, available grip can also change as speed falls. A braking profile from a high-downforce race car cannot simply be transferred to a road car. Our street aero vs track aero guide explains the different design priorities. Neither aero hardware nor brake technique removes the need to manage entry speed. Can Trail Braking Fix Understeer or Make You Faster It may improve lap time when a cleaner entry enables an earlier, better-controlled exit, but that benefit must be checked across comparable laps. Gaining time at turn-in is of little value if the exit loses more. It may help a particular corner-entry balance problem, but it cannot reliably cure understeer. A car that runs wide while turning may already be asking too much of the front tires. More brake or steering can increase that demand. An unloaded rear axle can also rotate farther than intended. First identify what is happening and when. Our understeer vs oversteer guide helps distinguish the two responses. Persistent instability deserves investigation of tires, alignment, brakes, suspension, and driver inputs rather than an increasingly aggressive entry. Keep changes traceable. If you alter damping, tire pressures, and brake release together, you lose a useful comparison. Our coilover track setup guide describes a methodical testing approach. Judge the result across entry, exit, and repeatability, not one impressive braking moment. What Telemetry Can Tell You Use data to test a specific question: did the release become more controlled without compromising the line or exit? Virtual Racing School's braking technique lesson provides simulator examples of release phases and speed-dependent grip. Those examples explain relationships; they are not targets for every real car. Brake signal: Look for the release shape and any unexpected reapplication. Check whether the channel measures pedal position or actual pressure. Steering and speed: Compare them at the same track positions. Check whether similar entries require similar inputs. Vehicle response: Match the trace with video, instructor feedback, and any available stability or rotation information. Exit and repetition: Check the following acceleration phase and several comparable laps, rather than selecting one isolated trace. Review data alongside driver observations and coaching. A smooth-looking trace alone does not establish that the entry was better. A drop in brake pressure without much steering could reflect a different line or reduced grip. Repeated brake applications could reflect traffic, a mistaken entry speed, or an intentional adjustment. Ask what happened before deciding what to change. Can Trail Braking Save an Overly Fast Road Corner Entry It cannot guarantee crash avoidance, and this track exercise should not be treated as an emergency recovery method. Public-road curves can hide traffic, debris, changing grip, and a tightening radius. There may be no runoff or space to correct a mistake. The Pennsylvania driver's manual advises drivers to reduce speed before entering a curve. Choose a speed appropriate to visibility and conditions before turning. Follow local driving guidance and the vehicle manual; do not practice performance-driving overlap on public roads. Common Trail Braking Mistakes Moving the braking point first: Learn the release from a consistent, conservative approach before asking an instructor about later braking. Holding heavy pressure as steering builds: Overlap requires managing combined demand, not maintaining the straight-line input. Releasing abruptly: A sudden pedal change can disturb the transition you are trying to control. Forcing the brake to the apex: A geometric reference does not determine the right release point for every car. Using technique to mask a problem: Stop chasing rotation when the vehicle's behavior or mechanical condition needs investigation. Frequently Asked Questions Do You Need to Trail Brake in Every Corner No. Use it only where the entry task, available grip, vehicle balance, and your skill make it appropriate. A simpler entry can provide a better result. Can Trail Braking Cause Oversteer Yes. Braking while turning can reduce rear stability, particularly with excessive pressure or abrupt inputs. The effect depends on the car and conditions. Does ABS Make Trail Braking Safe ABS helps manage wheel lock; it does not remove tire-grip limits or guarantee the intended cornering path. Follow the vehicle's guidance and learn with an instructor. Is Left Foot Braking Required No. Trail braking describes the brake-release pattern, not which foot operates the pedal. Learn with the pedal technique appropriate to the car and your instruction. Technical Sources Northeast Region Porsche Club of America Driving Terminology — combined grip, threshold braking, and trail braking terminology. Toyota Australia GAZOO Racing Episode 3 Trail Braking — track-focused balance and slow-corner examples. Its numerical teaching examples are not used as universal targets here. Virtual Racing School Fundamentals Braking Technique — simulator examples of release phases and downforce-related changes. Pennsylvania Driver Manual Negotiating Curves — public-road approach speed guidance.

The GT 63 S X290’s four-door fastback shape already brings a strong presence, so exterior changes work best when they follow its existing lines. The REVOZPORT Street Program offers a six-piece carbon-fiber range for the front, sides, and rear. You can select parts separately or combine them for a coordinated exterior look. The range adds visible detail while keeping the original design as its starting point. Pre-preg carbon fiber is carbon-fiber material impregnated with resin before it is shaped and cured. Each part has a stated vehicle application, so your model details matter before you choose. Consider the amount of change you want, then match the selected part to the car’s exact application. Treat exact vehicle identification as the first step toward a well-matched exterior update. Key Takeaways The six-piece range covers the front, sides, and rear. Parts can be ordered separately or selected as a coordinated look. Check the exact model, year, and generation before ordering. Finish options include gloss, matte, and forged carbon. Three named parts have specific plug-and-play descriptions. How Do These Upgrades Follow the GT 63 S’s Original Lines? A coherent exterior treatment carries a visual line from the nose through the side profile to the rear. The Mercedes-AMG GT 63 S pairs four-door practicality with fastback proportions, so the front, side, and rear details need to suit one another. A vehicle-specific design can look more integrated than unrelated parts with competing shapes. REVOZPORT describes the Street Program as a set of front, side, and rear aero components brought together in one design approach. That description concerns the exterior treatment, not a measured performance result. The same idea applies when you choose only one piece: its outline should make sense beside the factory bodywork. For more ideas on matching exterior parts, a guide to BMW carbon-fiber upgrades compares restrained styling with more assertive designs. Its examples concern BMW models, not X290 fitment. Research on vehicle form and color also explores how people respond to exterior design through an automobile exterior design study. Use these three checkpoints to judge whether a group of parts feels balanced: Follow the bumper and body lines. Balance the visual weight at the front, sides, and rear. Decide whether carbon should read as one accent or a repeated theme. A restrained choice can preserve the car’s familiar shape, while repeated carbon details create a stronger theme. Neither approach is automatically right; the important point is consistency. Compare the outline of each part with the factory bodywork before choosing a combination. What Do Mercedes-AMG GT 63 S X290 Carbon Fiber Body Kit Upgrades Include? The range covers six separate exterior pieces, from a lower front lip to rear bumper details. Together, they address five vehicle areas, with two parts grouped at the rear in the table. The six pieces are add-on styling parts, not a widebody conversion. A Mercedes-AMG GT body kit can mean selected add-ons or a wider exterior package. Here, the body kit consists of six distinct parts for the stated X290 application. An AMG GT 63 mods project can focus on exterior appearance without suggesting a performance gain. Vehicle area Part or parts Visual contribution Front lower edge Front lip Defines the lower nose Front bumper Front bumper vents Adds localized front detail Lower sides Side skirts Extends the treatment along the profile Lower rear Rear diffuser Gives the bumper area a more structured look Upper and outer rear Rear spoiler; rear bumper canards Adds separate accents to the rear profile and bumper Listings and casual conversations may use AMG GTS as a broad label, but that term alone does not identify X290 fitment. Check the named vehicle application instead. Use the table to decide which area of the car you want to change first. What Does the Front Lip Change at the Nose? The front lip gives the nose a more defined lower edge by extending the bumper’s existing line. It is shaped for the original AMG GT 63 S bumper geometry. The part is a styling component, not a source of stated or measured aerodynamic performance. By continuing the bumper’s lower outline, the carbon fiber front lip can make the front view appear more grounded. The factory bumper remains the main shape, while the extension adds a distinct edge beneath it. This may suit you if the nose feels visually unfinished without changing its overall form. The X290 front lip is listed as product RZ-BC-1255. That code helps distinguish the part from other front-end options when comparing listings or discussing a selection. The name front lip describes its placement and style, not a promise about handling or airflow. Before choosing it, look closely at the lower bumper contours and nearby trim. A lip that follows those lines can appear connected to the car; a shape that clashes may stand out for the wrong reason. Check the front bumper shape closely when deciding whether this is the most visible first addition. How Do Front Bumper Vents Alter the Front Detail? Front bumper vents add detail higher on the nose than the front lip’s lower-edge treatment. The vents are a named component in the REVOZPORT X290 range and sit at the front bumper. They provide a localized carbon-fiber accent, not a stated airflow benefit. That position gives you a smaller front-end detail to consider alongside the lip or on its own. The vents can break up a broad bumper surface without making the whole front end the focus. Their visual effect depends on how much contrast you want against the surrounding bodywork. Keep the distinction clear when comparing front pieces: the vents add detail to the bumper area, while the lip changes the lower edge. Neither choice requires you to select the other. A front bumper can look more detailed with one focused accent than with several competing additions. Carbon fiber front details may draw more attention when repeated elsewhere on the vehicle. A single front accent can also suit a more restrained exterior plan. Consider the vents as a localized accent when a full front-end change would feel too prominent. What Do Side Skirts Add Along the Profile? Side skirts extend the visual treatment along the lower profile between the front and rear wheels. REVOZPORT lists carbon-fiber side skirts among the six exterior component categories for the Mercedes-AMG GT 63 S. They can carry the design theme along the sides instead of leaving a visual gap. The lower side profile connects the front and rear views, so skirts can help separate additions at each end feel related. Their long shape also makes them visible from a broad side view. Judge how that line follows the doors and lower body, not only the carbon surface itself. A side-focused selection can make sense if you do not want visible parts at both ends of the car. You might prefer to change the profile while keeping the front and rear closer to their factory appearance. That choice is still a deliberate exterior treatment, rather than an incomplete version of a larger package. Owners comparing body styles can see why exact vehicle shape matters in this BMW M3 body kit guide. Its Sedan and Touring examples concern BMW parts and do not establish Mercedes fitment. Judge the skirts against the car’s full side silhouette rather than the part viewed by itself. How Does the Rear Diffuser Shape the Back End? At the rear, the diffuser brings a more structured finish to the lower bumper area. The X290 part is designed around the original AMG rear-bumper structure. Its stated role here is visual styling, not a tested aerodynamic result. The lower rear is a broad area that can look more defined with a distinct carbon-fiber treatment. A diffuser designed around the bumper’s original structure can appear connected to that shape, rather than like an unrelated add-on. Its effect depends on how the new outline sits beside the rest of the rear trim. The product code for this rear diffuser is RZ-BC-1258. Use the name and code together when comparing product details, especially if several rear parts are under consideration. The term “diffuser” does not by itself show that a part has a measured effect on airflow. Look at the exhaust area and any trim already fitted before choosing the lower rear treatment. Their shapes can affect whether the diffuser appears balanced from behind. Check how the lower diffuser treatment will sit with the rear bumper and exhaust-area styling already on the car. What Role Does a Rear Spoiler Play? A rear spoiler draws attention to the upper edge of the car’s rear profile. The REVOZPORT Street Program names a carbon-fiber rear spoiler as one of its six X290 exterior components. Use the exact product name and vehicle application to judge whether a spoiler fits your car. The spoiler acts as an accent above the rear bodywork and can sharpen the fastback silhouette. Its visual role differs from a lower rear treatment, so the two parts can make separate changes to the back of the car. The word “spoiler” identifies the named component, not every wing-shaped part on the market. An AMG GT wing search does not establish that a particular wing or spoiler fits the X290. Wing and spoiler are related styling terms, but they are not interchangeable fitment claims. This matters when a listing uses a broad label without naming the exact vehicle application. Some listings also use terms such as AMG GTS or carbon fiber rear to describe a general style. Those labels alone do not confirm compatibility with this four-door model. Match the part name and vehicle application, not just a broad wing-style label, when comparing options. Where Do Rear Bumper Canards Fit Into the Design? Rear bumper canards add a focused detail to the outer areas of the rear bumper. The X290 rear canards follow the original AMG GT 63 S rear-bumper geometry. They offer a smaller rear accent than replacing the full diffuser area. The carbon-fiber pieces draw attention to localized parts of the bumper rather than changing the whole lower rear treatment. Their scale may suit you if you want a limited change at the back. Their stated role is visual, and the design is tied to the original bumper geometry. The product code for the rear bumper canards is RZ-BC-1260. That identifier can help you keep the canards distinct from other rear parts during selection. Bumper canards are a separate product category from a spoiler or diffuser, even when a complete rear look uses more than one. Consider how the outer bumper areas relate to the center section and any existing trim. A compact detail can look out of place if nearby contours already carry strong lines. Check the bumper’s existing contours to decide whether this small-scale rear accent suits the overall treatment. Should You Choose Individual Parts or a Coordinated Setup? Choose individual parts when you have one clear priority, and a coordinated setup when you want the exterior to read as a unified design. REVOZPORT offers the Street Program components separately or as a combined exterior selection. Choose the scope first, then select pieces that support that decision. Start With the Area You Want to Change A single part keeps the change focused on one area. A two-area combination can link parts without adding detail across the whole car. This route works when you have a clear preference, such as emphasizing the profile or adding a front and rear accent. Use one of these practical routes to set the scope: One focal part for a limited change. A two-area combination to connect selected views. A coordinated front, side, and rear look. The list describes different levels of exterior change, not different performance packages. Each part remains an add-on styling component. Your choice can reflect how much carbon you want visible and how many areas you want to alter. Build a Consistent Front-to-Rear Treatment Combining front, side, and rear details can create a repeated visual theme. The parts do not need to be equally prominent, but their outlines should feel related. For a broader discussion of coordinated choices, this Audi RS Q8 body kit guide describes selecting parts across several vehicle areas. Its products fit a different model and are not X290 components. An AMG GT 63 widebody kit or AMG GT widebody kit describes a different kind of change from these add-on parts. A widebody conversion changes the body’s width, often through wider fenders or arches; this range does not. An AMG GT GT3 body kit search also does not prove that these X290 parts are GT3 components. You can keep a coordinated look restrained by repeating a finish in selected areas rather than adding every part. A more complete setup can also make the carbon theme more visible from several angles. Decide your preferred scope before comparing finishes or ordering separate components. Which Carbon Fiber Finish Fits the Exterior? The stated material is pre-preg Toray carbon fiber, and finish selection is a separate styling decision. The available finish choices are gloss, matte, and forged carbon. These options describe appearance, not a claim about weight or performance. Pre-Preg Toray Carbon Fiber Pre-preg carbon fiber is carbon-fiber material impregnated with resin before it is shaped and cured. REVOZPORT states that its carbon-fiber products use pre-preg Toray carbon fiber. That material description does not, by itself, provide a weight figure or a performance result. If you are comparing material terms across products, a carbon-fiber body kit buying guide covers material, fitment, and installation checks. It helps explain why construction terms should not be treated as identical claims. Focus on the stated material and the exact part you plan to select. Gloss, Matte, and Forged Carbon Gloss, matte, and forged carbon are the three stated finish options. The names identify the listed choices, but they do not establish every detail of a particular product’s surface. A finish is a visual decision about how the part will appear beside the vehicle’s paint and trim. A separate comparison of matte and gloss carbon fiber discusses how those finishes can change the look of a build. The X290 range also lists forged carbon, so the comparison does not cover every listed choice. Select a finish that suits the look you want across the parts you plan to use. Custom Weave and Color Requests Custom weave patterns or colors may be available by special request. They are not stated as standard choices for every part. If you want a custom option, treat it as a separate request rather than assuming it comes with the listed finishes. Finish choice Stated availability Selection note Gloss Listed option Standard stated finish choice Matte Listed option Standard stated finish choice Forged carbon Listed option Standard stated finish choice Custom weave or color Special request Availability is not guaranteed Confirm the exact finish and any custom request before treating a combination as order-ready. How Can You Confirm X290 Model-Year Fitment? Verify the exact model, year, and generation instead of relying on the GT 63 S name alone. The product range is identified for the Mercedes-AMG GT 63 S X290. That stated application does not establish fitment for every year, trim, or body style. Identify the Exact Four-Door Coupe Start with the vehicle’s full model designation and body style. The Mercedes-AMG GT 63 4-Door Coupe is distinct from other vehicles that may share GT or AMG names. A similar badge or general model family is not enough to identify a compatible exterior part. Record the part you want alongside the vehicle details. A front component and a rear component can have different application notes, even when both belong to the same product range. Keep the selected component in view while checking the vehicle rather than treating the whole range as one fitment item. Verify Year and Generation Before Ordering A 2018 Mercedes-AMG GT 63 S X290 carbon fiber body kit upgrades question needs the exact vehicle checked. A 2021 Mercedes-AMG GT 63 S X290 carbon fiber body kit upgrades question needs the same care. The year alone does not establish that a specific part fits. Use this four-item checklist when confirming fitment: Exact model designation. Model year. X290 generation. Body style and selected component. Check that the details match the named application for the part you intend to order. Do not extend a fitment claim to another year or body style without a stated application. Resolve any mismatch in the vehicle details before selecting a component. What Should You Know About Mounting and Installation? The stated Street Program approach uses existing vehicle mounting points without cutting or drilling. REVOZPORT describes the components as application-specific with OEM-style fitment. That general approach should not be read as identical installation instructions for every part. Existing Mounting Points and Fitment Application-specific fitment means the component is described for a named vehicle application. Existing mounting points are part of the stated mounting approach. The details for a selected product still matter, so an installer should review the instructions for that part. Ask the installer these questions before work begins: Which existing mounting points does the part use? Does the exact vehicle match the stated application? What installation steps are needed for this selected part? Plug-and-Play Claims for Three Parts The front lip, rear canards, and rear diffuser are each described as plug-and-play with no trimming required. This specific wording applies to those three products. Do not assume the same plug-and-play description applies to every Street Program component. Part Stated installation description Trimming required Front lip Plug-and-play No Rear canards Plug-and-play No Rear diffuser Plug-and-play No These descriptions make the listed trimming requirement clear, but they do not replace product-specific installation steps. The term fiber body kit does not mean every part uses the same method. Confirm the installation details for each chosen part rather than assuming every component has identical instructions. How Much Do the Six Pieces Cost Individually? The six components have individual listed prices ranging from $689 to $2,775 in 2026. These are individual prices, not a package total or a promise about a coordinated-set price. The combined rear-details row shows separate prices for both listed parts. The front lip, side skirts, and rear diffuser have the highest listed prices among the six components. The rear bumper canards have the lowest listed price. Your total depends on which pieces you choose, not on a stated package rate. Vehicle area Part Listed price Front Front lip, RZ-BC-1255 $2,275 Front Front bumper vents $799 Sides Side skirts $2,075 Lower rear Rear diffuser, RZ-BC-1258 $2,775 Rear details Rear spoiler, $1,375; rear bumper canards, RZ-BC-1260, $689 $1,375 and $689 The rear-details entry lists two separate products, not one combined price. Each amount is an individual 2026 listed price. Adding selected parts can help you plan a parts total, but that sum is not a coordinated package quote. Check the component names and product codes against the items you intend to select. The listed prices distinguish each part, while the combined rear row keeps both rear accents visible. Compare the parts you actually plan to use rather than assuming the six individual prices form a package quote. What Warranty Coverage Applies to the X290 Parts? The stated product warranty for the front lip, rear canards, and rear diffuser lasts one year and covers manufacturing defects. Carbon-fiber products also have one-year coverage against UV clear-coat fading or peeling. These terms are not a general performance guarantee. The named manufacturing-defect warranty applies to three specific products: the front lip, rear canards, and rear diffuser. The UV clear-coat coverage is stated for carbon-fiber products. These are separate coverage points, so keep the product and issue clear when recording a concern. Manufacturing defects must be reported within 14 days of package delivery. That deadline begins when the package arrives, not when you later choose to fit the part. Keep the delivery date and any product details together for your records. One-year coverage does not mean that every issue or change in appearance has the same cause. The stated UV term names clear-coat fading or peeling, while the product warranty names manufacturing defects. Record the package delivery date and report a manufacturing defect within the stated 14-day window. What Should Buyers Check Before Ordering? Before ordering, confirm the exact part, finish, vehicle details, and delivery expectations. Shipping costs and delivery times vary by location and product availability. Retain the original packaging because it is part of the stated return conditions. Use this four-item pre-order list to keep the main details in one place: Confirm the selected component and vehicle details. Verify the finish and any special request. Ask about shipping cost and delivery timing for your location and product availability. Keep the original packaging after delivery. Shipments are fully insured, while shipping costs and delivery times can differ by location and stock status. Ask for the estimate that applies to your destination and chosen item. This gives you a clearer view of the order before it ships. If you need to return an item, contact REVOZPORT for authorization and instructions before sending it back. Eligible items must be unused and in original condition and packaging to qualify for a refund. The buyer pays return shipping costs. Keep order details and packaging together after delivery. That makes it easier to identify the part and preserve the condition required for a possible return. Keep the original packaging and obtain return instructions before shipping any item back. Conclusion A well-chosen exterior update should suit both the car’s proportions and the amount of change you want. One part can create a focused accent, while a coordinated selection can carry a consistent theme across the vehicle. The best choice is the one that follows the X290’s original lines and your preferred scope. Before ordering, match the selected part to the exact vehicle application and confirm its finish. Confirm the exact model, year, generation, and selected component before placing an order. FAQ How much does a full set of the six REVOZPORT pieces cost at the listed individual prices? The six individual 2026 prices add up to $9,988. That figure is the sum of listed individual prices, not a package price or a confirmed coordinated-set offer. The calculation includes the front lip, vents, side skirts, diffuser, spoiler, and rear canards. A selected combination will cost less than this sum when it includes fewer pieces. Can I install the front lip, rear canards, and rear diffuser without trimming? Yes, each of those three parts is described as plug-and-play with no trimming required. The front lip, rear canards, and rear diffuser have that specific stated description. It does not establish the same installation details for the front bumper vents, side skirts, or rear spoiler. Review the instructions for the exact product you choose. Which Mercedes-AMG GT 63 S model years fit the X290 parts? The exact model year range is not established by the X290 name alone. Confirm the model, year, and generation for your vehicle, then compare those details with the selected component’s stated application. Do not assume a year fits because another GT 63 S carries the same badge. The body style also matters when identifying the four-door coupe. Are custom carbon-fiber colors or weave patterns available? Custom colors or weave patterns may be available by special request, but they are not guaranteed standard options. The stated finish choices are gloss, matte, and forged carbon. If you want a custom selection, treat it as a request that needs confirmation for the specific part. Do not assume every custom look is offered across the full range. What does the one-year REVOZPORT product warranty cover? The stated one-year manufacturing-defect warranty applies to the front lip, rear canards, and rear diffuser. Carbon-fiber products also have one-year coverage against UV clear-coat fading or peeling. These are the named coverage terms, not a broad promise about performance or every possible issue. Manufacturing defects must be reported within 14 days of package delivery. Who pays return shipping for an eligible return? The buyer pays return shipping for an eligible return. The item must be unused and in its original condition and packaging to qualify for a refund. Contact REVOZPORT for authorization and instructions before sending anything back. Keep the packaging after delivery, since the stated return conditions include both the item’s condition and its original packaging.

A hard stop, a quick lane change, and a turn all change how firmly each tire presses against the road. Why can the same car feel settled one moment and unsettled the next? The answer helps you read changing grip and handling during everyday driving or performance driving. Understanding weight transfer in cars can help you anticipate what the tires may do as you brake, accelerate, or steer. It does not make public roads a place to test a car’s limits. Instead, it gives you a practical reason to use smooth inputs and leave room for changing conditions. Key Takeaways Tire loads change when you brake, accelerate, or steer. The vehicle’s total mass does not move between its tires. Load changes can affect grip and handling balance. Higher CG can increase load transfer for the same maneuver. Use smooth inputs on public roads, and leave a safety margin. Learn limit techniques only with qualified instruction on a closed course. Smooth, deliberate inputs help you keep more control when the available grip changes. What Is Weight Transfer in Cars? The car does not shed or slide its mass from one end to another; the tire loads change as forces act on the moving vehicle. Weight transfer describes changing tire loads, not a change in the vehicle’s total mass. Braking, acceleration, and steering change how firmly the four tires press on the road. The vehicle’s center of gravity (CG) is the point at which its mass can be treated as concentrated when describing how forces act on it. Newton’s first law describes inertia, the tendency of an object to resist a change in motion. As a car changes speed or direction, forces at its four tire contact patches affect the load each tire carries. Imagine placing one bathroom scale under each tire. The readings would change during braking, acceleration, or a turn, even though the car’s mass remained the same. The scales illustrate load changes, not a literal shift of the car’s mass from one side to another. Three common driver inputs create changing loads: Pressing the brake pedal slows the car. Pressing the accelerator increases forward acceleration. Turning the steering wheel changes the car’s direction. These forces change car balance because the four tires do not carry equal loads in every situation. The difference can be temporary, such as during a quick stop, or sustained through a steady turn. Think of weight transfer as a change in how the four tires share the vehicle’s load, not a change in the vehicle’s total mass. What Causes Weight to Shift During Acceleration and Braking? Pressing the accelerator creates a rearward load shift because the car’s inertia resists the change in forward motion. Acceleration moves load toward the rear axle, while braking moves load toward the front. The formula for weight transfer in cars depends on acceleration, CG height, and wheelbase. The tire contact patches apply forces where the rubber meets the road. Inertia acts through the CG as the car’s motion changes, which helps explain why the front and rear loads change. Acceleration is what causes a vehicle’s weight to go to the back, although the vehicle’s mass does not physically slide rearward. For a simple longitudinal load transfer estimate, use this formula: transfer = mass × acceleration in g × CG height ÷ wheelbase. Mass is the vehicle’s mass, acceleration in g compares acceleration with gravity, CG height is the center’s height above the road, and wheelbase is the distance between the axles. For example, consider a 1,000 kg vehicle with a 0.6 m CG height and a 2.7 m wheelbase. At 1g acceleration, the calculation is 1,000 × 1 × 0.6 ÷ 2.7, which gives about 222.22 kg of transfer from front to rear. The result describes a change in axle loads, not the car’s total mass. Follow these steps when using the formula: Enter acceleration in g. Multiply it by the vehicle’s mass and CG height. Divide the result by the wheelbase. Interpret the direction: positive acceleration shifts load rearward. Use a negative acceleration value for braking, which shifts load forward. In these calculations, acceleration is positive and braking is negative. The direction tells you which axle gains load and which loses it. Treat the worked result as a change in load between axles, not as mass physically sliding through the cabin. How Do Longitudinal and Lateral Weight Transfer Differ? Longitudinal transfer changes the front-to-rear load split, while lateral transfer changes the inside-to-outside split. Braking and acceleration create longitudinal load transfer; cornering creates lateral load transfer. The terms describe different directions of load change. Longitudinal load transfer is associated with the car’s pitch, such as its nose dipping during braking. Lateral load transfer is associated with roll, such as the body leaning through a turn. Body motion is visible movement; tire load is the changing force pressing each tire into the road. Maneuver Transfer direction Common body motion Tire-load effect Braking Rear to front Dive Front tires gain load; rear tires lose load Acceleration Front to rear Squat Rear tires gain load; front tires lose load Cornering Inside to outside Roll Outside tires gain load; inside tires lose load When a car corners, the lateral calculation describes the total transfer across the vehicle. It does not directly give the load on each individual wheel. The tires’ starting loads and the car’s suspension also shape how the change is shared. Forward or backward weight transfer is called longitudinal load transfer, regardless of whether the vehicle is braking or accelerating. How Does Weight Distribution Affect Different Drivetrains? Weight distribution describes the vehicle’s starting load split, while drivetrain layout determines which tires receive engine torque. Drivetrain layout does not change the basic direction of acceleration load transfer, which is rearward. It does affect which tires must share drive force with steering or other tasks. Many production vehicles have a front-heavy weight distribution around 60/40 front to rear. The tendency for vehicles to carry most of their weight at the front is called front weight bias. Unloaded pickups commonly carry about 60-65% of their weight over the front axle. Drivetrain Driven tires Acceleration load shift Practical tendency FWD Front Rearward Front tires may have less steering and drive traction under hard acceleration RWD Rear Rearward Rear tires may gain acceleration traction as front steering load falls AWD All four; torque split varies by design Rearward Torque split and vehicle balance shape how traction is shared A 50/50 front-to-rear split is one example of balance, not a universal performance ideal. Vehicle layout sets the starting point, while passengers and cargo can change the static distribution. A load placed behind the rear axle can affect balance differently from the same load secured near the center. A front-heavy car can still handle well, and a near-even split does not guarantee strong grip. Tire condition, suspension, and road conditions also matter. For another factor at speed, see this guide to front-to-rear downforce balance, which is related to but distinct from static weight distribution. Treat front-heavy or rear-heavy tendencies as a starting point, not a prediction that overrides the vehicle’s actual setup and conditions. How Do CG Height, Wheelbase, and Track Width Affect Load Transfer? A taller CG increases the leverage that acceleration has on the vehicle, so more load shifts for the same maneuver. CG height works with wheelbase for front-to-rear transfer and with track width for side-to-side transfer. Track width is the distance between the left and right tires on an axle. A higher CG creates a longer lever arm as the car brakes, accelerates, or corners. That leverage increases the load change for the same maneuver. A vehicle’s CG height relative to its track determines side-to-side load transfer, while its height relative to its wheelbase determines front-to-rear load transfer. Why CG Height Changes the Load Shift Lowering the CG can reduce the leverage that acts during load transfer, but ride height alone does not tell you the exact CG. A low CG in modern cars is typically under 18-20 inches above the ground. That range is a general description, not a specification for every car or model year. Examples show how much CG height can vary by vehicle. The 2014 Chevrolet Corvette (C7) Z51 had a listed height of 44.5 centimetres (18 inches). The 2013 Alfa Romeo 4C had a listed height of 40 centimetres (16 inches). How Wheelbase and Track Width Set the Lever A longer wheelbase reduces the front-to-rear lever effect for a given CG height and acceleration. A wider track reduces the side-to-side lever effect for a given CG height and cornering force. Geometry matters alongside acceleration, not as a stand-alone measure of handling. Vehicle and model year CG height in centimetres CG height in inches Vehicle type 1987 Dodge Ram B-150 85 33 Pickup 1998 Chevrolet Tahoe 72 28 SUV 2000 Lotus Elise 47 19 Sports car 2014 Tesla Model S 46 18 Sedan 2017 Formula 1 car 25 10 Race car The inch figures appear as given, including rounding. For high-profile vehicles, crosswinds can add another lateral force, especially on open roads and bridges. Read about crosswinds and road-surface effects for more on stability in those conditions. Compare a vehicle’s CG with its own wheelbase or track rather than judging transfer from ride height alone. How Does Weight Transfer Affect Tire Grip? A tire generally gains grip as its vertical load rises, but it does not gain grip in direct proportion to that extra load. Adding load to one tire does not create an equal increase in the vehicle’s total available grip. This effect is called tire load sensitivity. As load increases, a tire can produce more grip, but its grip rises less quickly than its workload. That means a heavily loaded tire may contribute more than it did before, yet it does not fully make up for the grip lost by a tire that becomes lightly loaded. During a turn, the outside tires gain load and the inside tires lose load. Those gains and losses do not simply cancel. The combined capability of the tire pair or whole vehicle can fall as load becomes more uneven. Grip also depends on tire condition, road surface, and available traction. Worn tires, cold pavement, standing water, or loose gravel can change the result, even when the car’s load shift stays similar. Tire pressure and the tire’s design also affect how it responds to load. Downforce can add tire load at speed, but it is not the same as weight transfer. A well-shaped BMW G87 M2 aerodynamic body kit aims to manage airflow and add downforce. Aerodynamic load depends on speed and design, so it should not be confused with a change in the vehicle’s mass. Other parts can affect tire loading and contact consistency. Wheel weight contributes to unsprung mass, the suspension parts that move with the wheels. A track wheel should match the tire and clear the vehicle’s components, rather than being chosen by appearance alone. More load on one tire does not guarantee more usable grip across the whole vehicle. What Do Suspension and Damping Change? Suspension tuning influences how quickly the body moves and how load transfer is shared between axles, but it cannot erase the forces created by a turn. Springs and anti-roll bars affect roll stiffness; dampers control how quickly suspension movement happens. The distinction matters when you assess handling over a brief transition versus a steady corner. Lateral load transfer has three mechanisms: unsprung-mass transfer, direct lateral-force transfer through suspension geometry, and elastic transfer linked to body roll and roll stiffness. Geometry, springs, anti-roll bars, and dampers all affect how the car responds to changing loads. How Springs and Anti-Roll Bars Affect Load Sharing Springs and anti-roll bars resist body roll and help set roll stiffness. Their front-to-rear balance can change how lateral transfer is shared between the axles. Suspension tuning can alter that distribution, but it cannot remove the total transfer set by vehicle geometry and acceleration. A 50% cross-weight target is a common race-car setup baseline, not a rule for every road car. Cross-weight describes a setup relationship between diagonal wheel loads. Road cars also need to work across different passengers, cargo, roads, and tire conditions. Engineers can estimate tire loads with models that account for roll-stiffness distribution. A published vehicle-dynamics research study describes a method using a quasi-static load-transfer model and estimates tire forces from load distribution. What Dampers Control During a Transition Dampers resist suspension movement and shape how quickly the body settles after steering, braking, or a bump. They affect the transition, not the steady-state amount of load transfer in a sustained maneuver. A firmer damper may slow movement without reducing the final load change. For track use, change one setting at a time and compare results under repeatable conditions. A methodical coilover setup process can help separate ride-height changes from damping effects. A flatter-looking body does not by itself prove that the tires are carrying less load.   How Can Weight Transfer Lead to Understeer or Oversteer? If the front tires reach their grip limit first, the vehicle tends to understeer; if the rear tires reach it first, it tends to oversteer. The end of the car that reaches its grip limit first is the key diagnostic. These are possible responses near the limit, not guaranteed results of every driving input. Understeer means the front tires lose the grip needed to follow the driver’s steering path. Oversteer means the rear tires lose grip before the front tires. A shift in tire load can contribute, but tire condition, vehicle balance, drivetrain, suspension, road surface, and driver inputs all affect the outcome. Braking can unload the rear tires, which may contribute to oversteer if the rear axle reaches its limit. Acceleration can unload the front tires, which may contribute to understeer if the front axle loses needed grip. Neither response follows automatically from normal braking or acceleration. Drivers should also keep aerodynamic balance separate from weight distribution. At speed, a front-to-rear downforce imbalance can affect handling in a different way from a temporary load shift. The same car can respond differently as speed, tires, and road conditions change. A slide signals that the tires have less available grip than the driver’s input demands. Avoid treating an unexpected change in direction as a cue for a sudden correction. Treat a slide as a loss of available grip, not as a signal to add an abrupt steering or pedal input. How Should Drivers Manage Weight Transfer Safely? On public roads, the safest way to manage load changes is to leave a margin and make steering and pedal inputs smooth. You cannot switch off weight transfer, but you can avoid provoking sharp changes in tire load. Choose a speed that fits the road, visibility, traffic, and available traction. Use these everyday habits: Look ahead and slow before a turn. Brake and steer progressively. Leave space for sudden stops. Avoid abrupt throttle changes in a turn. Smooth Inputs on Everyday Roads Give yourself time to react when traffic slows or a road surface changes. Rain, gravel, worn pavement, and crosswinds can reduce a car’s margin. Smooth driving does not prevent load transfer; it helps control how quickly the load changes. Static Stability Factor (SSF) compares half the track width with CG height: SSF = (track width ÷ 2) ÷ CG height. Typical reported SSF values are 1.3-1.5 for passenger cars and 1.0-1.3 for SUVs. The NHTSA rollover-resistance report describes SSF as a screening measure, not a guarantee of rollover safety. Trail Braking and Throttle Control on a Closed Course Trail braking means gradually releasing brake pressure during turn-in. Trained drivers use it on a closed course, where they can learn the technique with an instructor and room to recover. It is not a public-road method for ordinary turns. On a closed course, a driver can also apply throttle progressively as the car exits a corner. The timing depends on grip and the vehicle’s response. Do not practice trail braking, threshold braking, or limit handling in public traffic. Rollover accounts for 34% of SUV occupant deaths versus 21% of passenger-car occupant deaths; the data year is not specified. Those figures describe a reported share, not a prediction for any one trip. On an unfamiliar or low-grip road, reduce speed before the turn rather than relying on a technique that needs a precise grip margin. What Do Real-World Examples Reveal About Weight Transfer? A routine stop demonstrates the same frontward load shift that engineers account for in higher-performance settings. Braking increases front tire load and reduces rear tire load. The tires still support the same vehicle mass, but the front and rear axles carry different loads during the stop. That shift can affect how the car responds if the driver brakes while turning. The front tires have more load, while the rear tires have less. The amount of grip available still depends on the tires, road, and braking force. In the mid-1960s, Funny Car racers moved the CG rearward to put more load on the rear wheels. The goal was to improve traction with bias-ply slicks. This change altered the car’s starting balance before acceleration created another rearward load shift. NHRA initially treated Funny Cars as a passing fad and tried to legislate the class out of existence. It placed Funny Cars first in gas dragster classes and then in fuel dragster classes. That history does not mean one specific car was banned. Modern car design also balances airflow and load. For instance, a body kit’s mass and aerodynamic effect are separate factors, and a single part may not improve handling by itself. The Funny Car example shows that deliberately changing the starting balance can matter as much as responding to a temporary load shift. Which Weight-Transfer Myths Should Drivers Avoid? The most useful correction is also the simplest: the vehicle’s mass stays the same while the tire loads change. Load shifts occur during braking, acceleration, and cornering, but the car still acts through its four tire contact patches. A few common myths can lead drivers to misread the vehicle. Keep these four points in mind: The car’s mass does not move from tire to tire. Visible body roll does not directly measure total lateral load transfer. Loading one tire does not create an equal increase in total grip. Smooth inputs manage the rate of load change but do not stop transfer. A car can roll visibly without showing exactly how much load each tire carries. Suspension design and movement shape what you see, while tire loads depend on forces and geometry. Likewise, a car with little visible roll can still have changing loads across its tires. These points matter when judging a setup or responding to a turn. A quick change in steering may create a sharper load change, even if the body looks calm. Judge the car by its response and the conditions, not by how much the body appears to move. Conclusion Your most useful takeaway is that tire loads change dynamically, but the vehicle’s total mass does not. Braking, acceleration, and cornering alter the load each tire carries, which can affect grip and handling. On everyday roads, practice smooth inputs and leave generous margins for traffic and changing conditions. If you enjoy performance driving, learn limit techniques only with qualified instruction in a controlled environment. On your next drive, focus on looking ahead and making each steering, braking, and throttle input smooth. FAQ What transfers weight from one point of the vehicle to another? Inertia resists acceleration while tire forces act at the road, changing the loads at the four tire contact patches. The vehicle’s mass does not travel from axle to axle. Instead, braking, acceleration, or steering changes how the car’s load is shared. The size and direction of that change depend on the maneuver and the vehicle’s geometry. What car was banned from NHRA? No single car represents the full story: NHRA tried to legislate Funny Cars out of existence by placing them in gas and then fuel dragster classes. That was a class-placement response, not a simple ban of one named car. Funny Car racers had changed their cars to improve rear-wheel traction, which helped make the class distinct. Does 100 pounds make a difference in a car? Yes, 100 pounds can affect a car’s load and balance, especially when added high or far from the vehicle’s center. The effect depends on the car’s mass, where the added load sits, and driving conditions. A secured load near the center usually affects balance differently from the same load on a roof rack or behind the rear axle. Is 4000 lbs a heavy car? Four thousand pounds is heavy compared with a compact car, while some larger cars and SUVs can reach that weight. Vehicle class is the useful comparison because body size, powertrain, and equipment differ. The number alone does not tell you how a car handles or stops. Tire condition, brakes, load placement, and road conditions also shape its response. Does weight transfer change how much grip the tires have? More tire load generally increases that tire’s grip, but tire load sensitivity means grip rises less quickly than load. A tire that gains load may add grip, while a tire that loses load may lose grip. Those changes do not cancel in a simple one-for-one way. Tire condition and the road surface also affect the grip available to the car. Can smooth driving prevent weight transfer? No, smooth driving cannot prevent weight transfer because braking, acceleration, and cornering still change tire loads. Smooth inputs control how abruptly those loads change, which helps the car respond in a more predictable way. Looking ahead and slowing before a turn can also leave more room for a sudden stop or a lower-grip patch of road.
